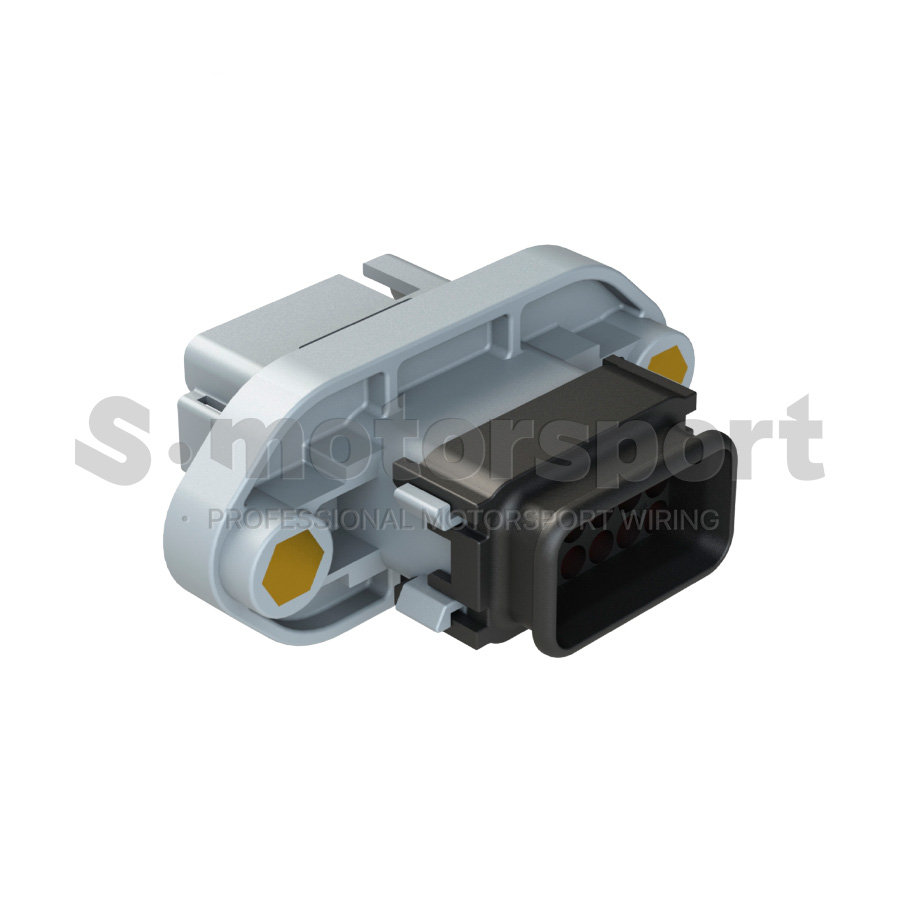

18-ти контактный разъем Amphenol Sine Systems AT16-18PA-PM15

18-ти контактный разъем Amphenol Sine Systems | AT Series | Panel Mate | PM15 | AT16-18PA-PM15 | Key - A / Color - Gray / Standard Seal / Pin (Корпус)

Техническое описание:

• Connector Series - AT Series Panel Mate PM15
• Connector Style - Receptacle
• Number of Positions - 18
• Contact Type - Pin
• Contact Size - 16
• Contact Current Rating (Max) - 13A
• Wire Seal - Standard Diameter Rear Seal
• Wire Seal Diameter - 2.44 mm - 3.68 mm
• Wire Size - (0.5 - 2.0 mm²) | (20 - 14 AWG)
• Keying Kode - A

• Housing Color - Gray
• Housing Material - Thermoplastic

• Temperature rating: -55 °C to +125 °C
• Water protection - IP67

В комплект поставки входит:

• 18-ти контактный разъем Amphenol Sine Systems | AT Series | Panel Mate | PM15 | AT16-18PA-PM15 | Key - A / Color - Gray / Standard Seal / Pin (Корпус) - 1 шт

Документация  >>>  Amphenol Sine Systems | AT16-18PA-PM15 Technical Drawing

Документация  >>>  Amphenol Sine Systems | Panel Mate

Документация  >>>  Amphenol Sine Systems | AT Series Catalog
