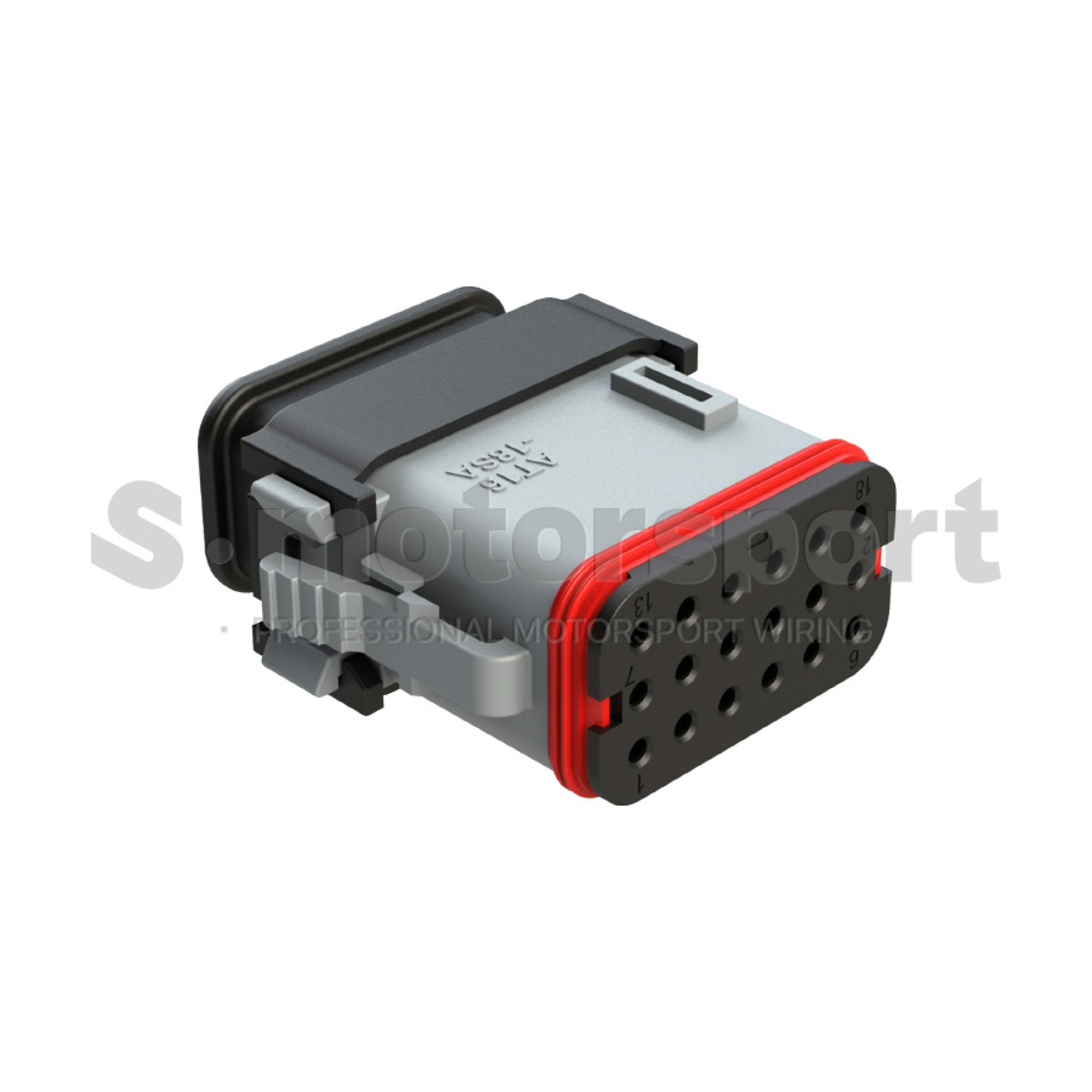

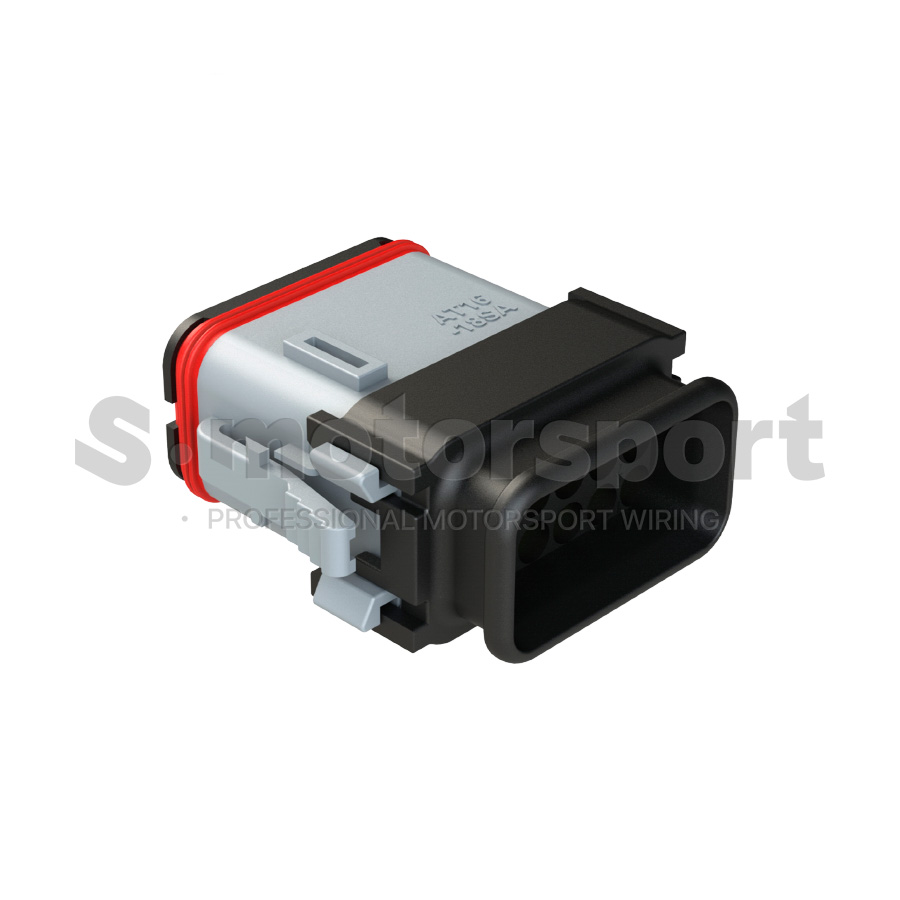

18-ти контактный разъем Amphenol Sine Systems AT16-18SA-EKSR02
18-ти контактный разъем Amphenol Sine Systems | AT Series | SR02 | AT16-18SA-EKSR02 | Key - A / Color - Gray / Reduced Seal / Socket (Корпус)
18-ти контактный разъем Amphenol Sine Systems | AT Series | SR02 | AT16-18SA-EKSR02 | Key - A / Color - Gray / Reduced Seal / Socket (Корпус)
Техническое описание:
- Connector Series - AT Series SR02
- Connector Style - Receptacle
- Number of Positions - 18
- Contact Type - Socket
- Contact Size - 16
- Contact Current Rating (Max) - 13A
- Wire Seal - Reduced Diameter Rear Seal
- Wire Seal Diameter - 1.35 mm - 3.05 mm
- Wire Size - (0.5 - 2.0 mm²) | (20 - 14 AWG)
- Keying Kode - A
- Housing Color - Gray
- Housing Material - Thermoplastic
- Temperature rating: -55 °C to +125 °C
- Water protection - IP67
В комплект поставки входит:
- 18-ти контактный разъем Amphenol Sine Systems | AT Series | SR02 | AT16-18SA-EKSR02 | Key - A / Color - Gray / Reduced Seal / Socket (Корпус) - 1 шт
Документация >>> Amphenol Sine Systems | AT16-18SA-EKSR02 Technical Drawing
Документация >>> Amphenol Sine Systems | AT Series 15, 18 Position Catalog
Документация >>> Amphenol Sine Systems | SR01/SR02 Extended Strain Relief Series
