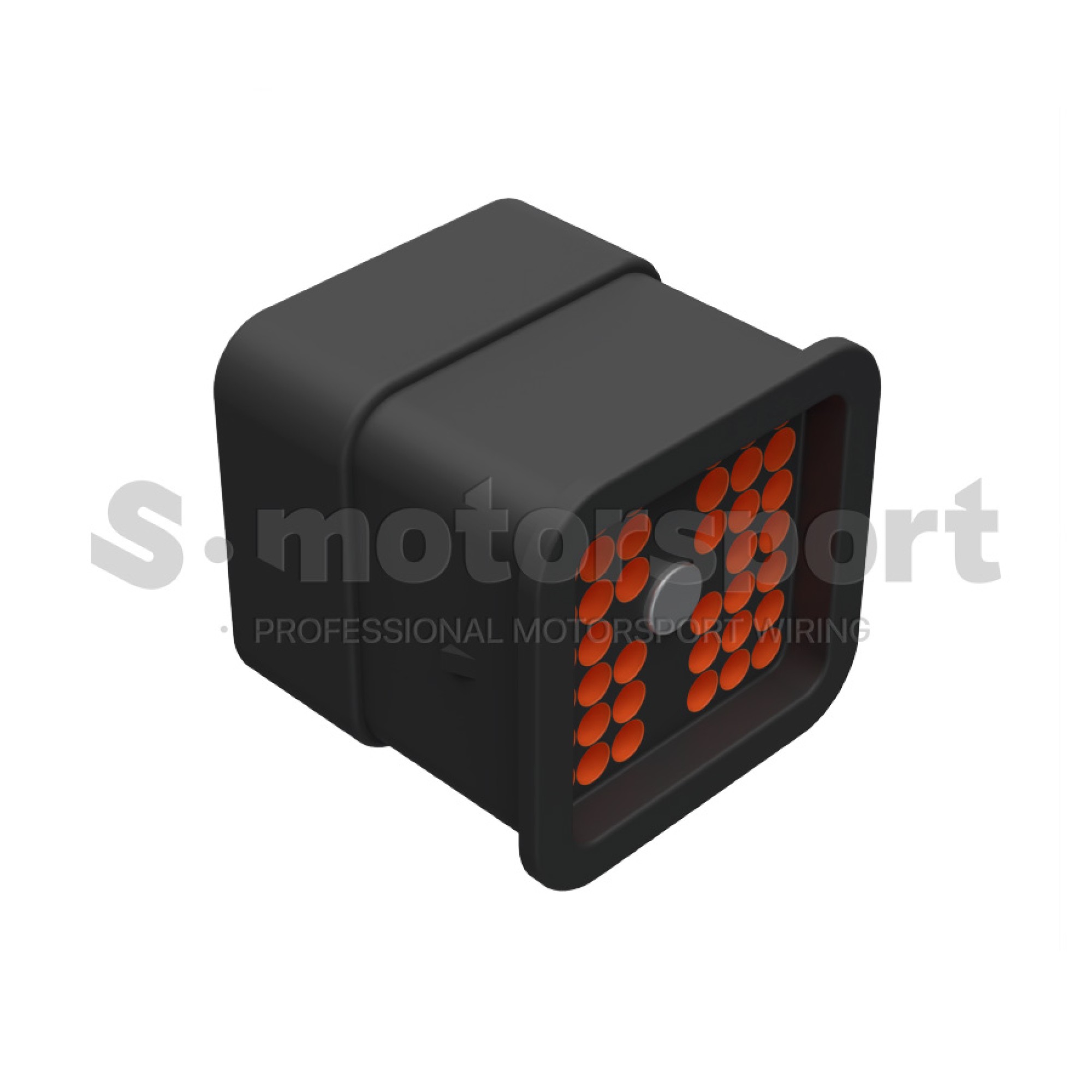

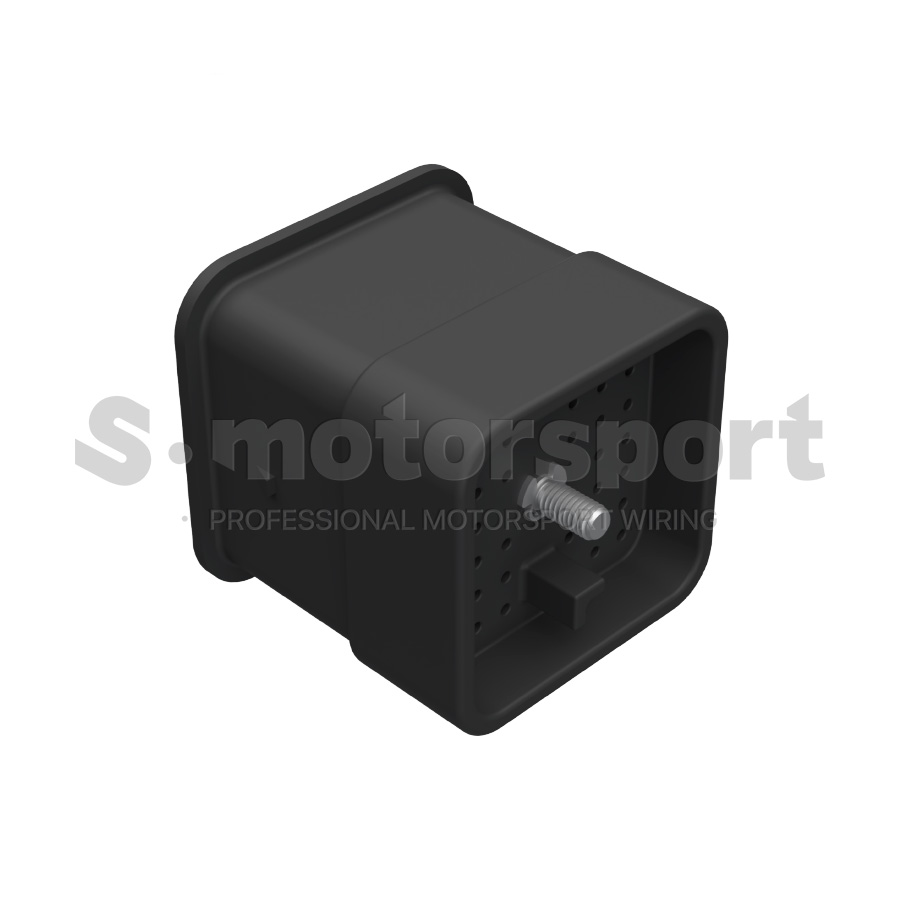

40 контактный разъем TE | DEUTSCH | AEC Series | AEC14-40PBE-E019

40 контактный разъем TE | DEUTSCH | AEC Series | AEC14-40PBE-E019 | Receptacle / Keying Code - A / Contact Size - #16 / Pin / Extra Thin Wall Seal (Корпус)

Техническое описание:

• Connector Series - AEC Series
• Contact Series - Deutsch Series
• Connector Style - Receptacle
• Number of Positions - 40
• Contact Type - Pin
• Contact Size - #16
• Contact Current Rating (Max) (A) - #16 size - 13A
• Keying Kode - B
• Wire Seal - Extra Thin Wall Seal
• Housing Material - PIE (Polyetherimide)

• Temperature rating: -55 °C to +125 °C
• Water protection - IP68

В комплект поставки входит:

• 40 контактный разъем TE | DEUTSCH | AEC Series | AEC14-40PAE-E019 | Receptacle / Keying Code - A / Contact Size - #16 / Pin / Extra Thin Wall Seal (Корпус) - 1 шт

Документация  >>>  TE | DEUTSCH | AEC Series | AEC14-40PBE-E019

Документация  >>>  TE | DEUTSCH | AEC Series | Configurations

Документация  >>>  TE | DEUTSCH | AEC Series | Part Numbering System

Документация  >>>  TE | DEUTSCH | AEC Series | Product Drawings
