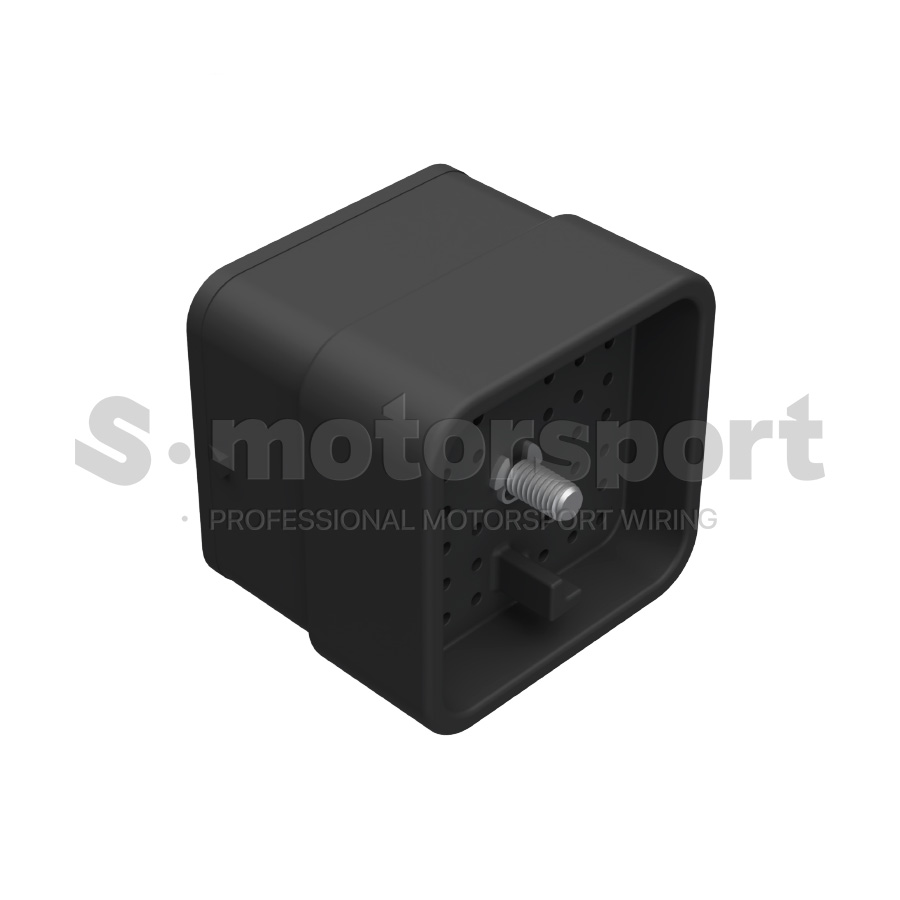

40 контактный разъем TE | DEUTSCH | AEC Series | AEC14-40PC
40 контактный разъем TE | DEUTSCH | AEC Series | AEC14-40PC | Receptacle / Keying Code - C / Contact Size - #16 / Pin / Standard Seal (Корпус)
40 контактный разъем TE | DEUTSCH | AEC Series | AEC14-40PC | Receptacle / Keying Code - C / Contact Size - #16 / Pin / Standard Seal (Корпус)
Техническое описание:
- Connector Series - AEC Series
- Contact Series - Deutsch Series
- Connector Style - Receptacle
- Number of Positions - 40
- Contact Type - Pin
- Contact Size - #16
- Contact Current Rating (Max) (A) - #16 size - 13A
- Keying Kode - C
- Wire Seal - Standard Seal
- Housing Material - PIE (Polyetherimide)
- Temperature rating: -55 °C to +125 °C
- Water protection - IP68
В комплект поставки входит:
- 40 контактный разъем TE | DEUTSCH | AEC Series | AEC14-40PC | Receptacle / Keying Code - B / Contact Size - #16 / Pin / Standard Seal (Корпус) - 1 шт
Документация >>> TE | DEUTSCH | AEC Series | AEC14-40PC
Документация >>> TE | DEUTSCH | AEC Series | Configurations
Документация >>> TE | DEUTSCH | AEC Series | Part Numbering System
Документация >>> TE | DEUTSCH | AEC Series | Product Drawings
