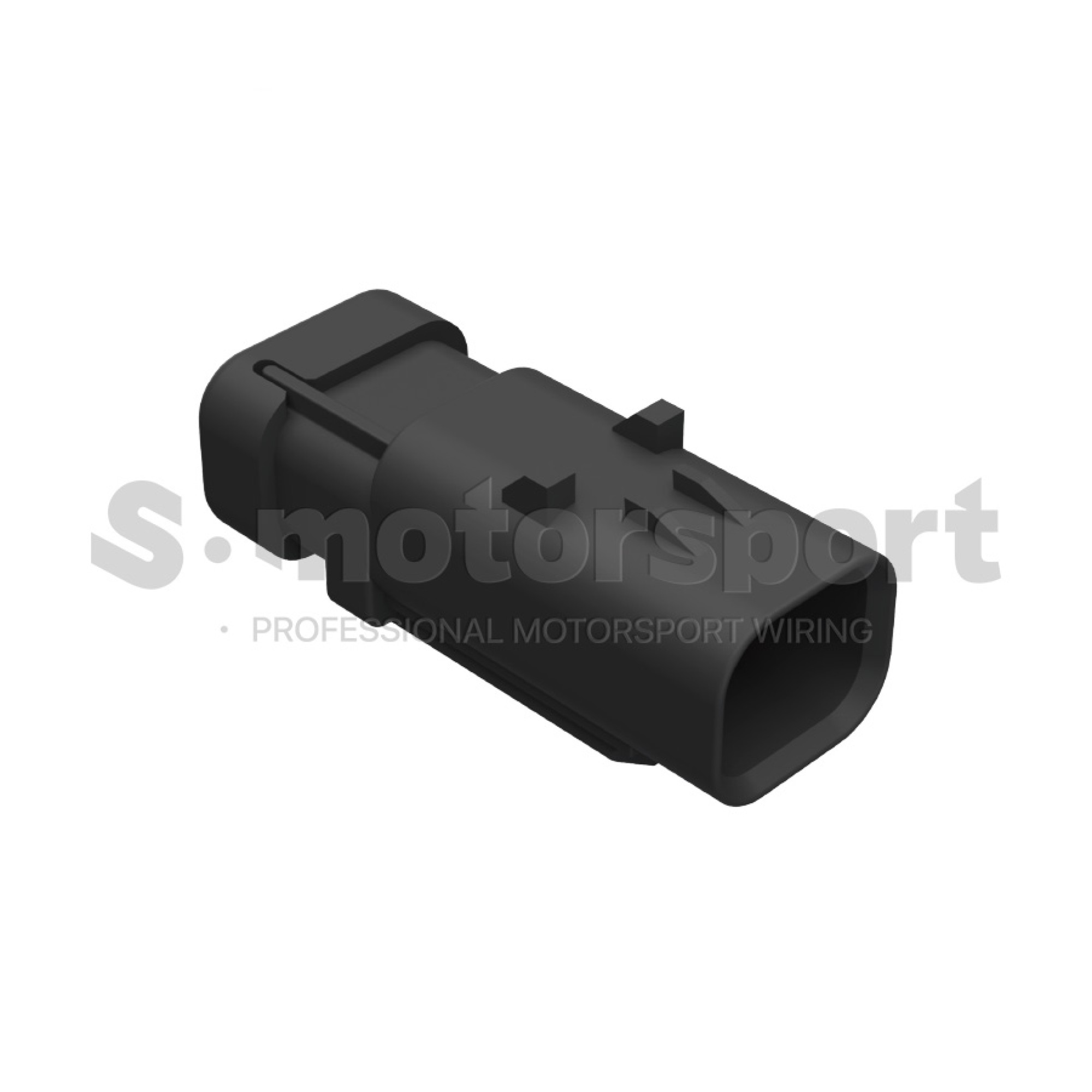

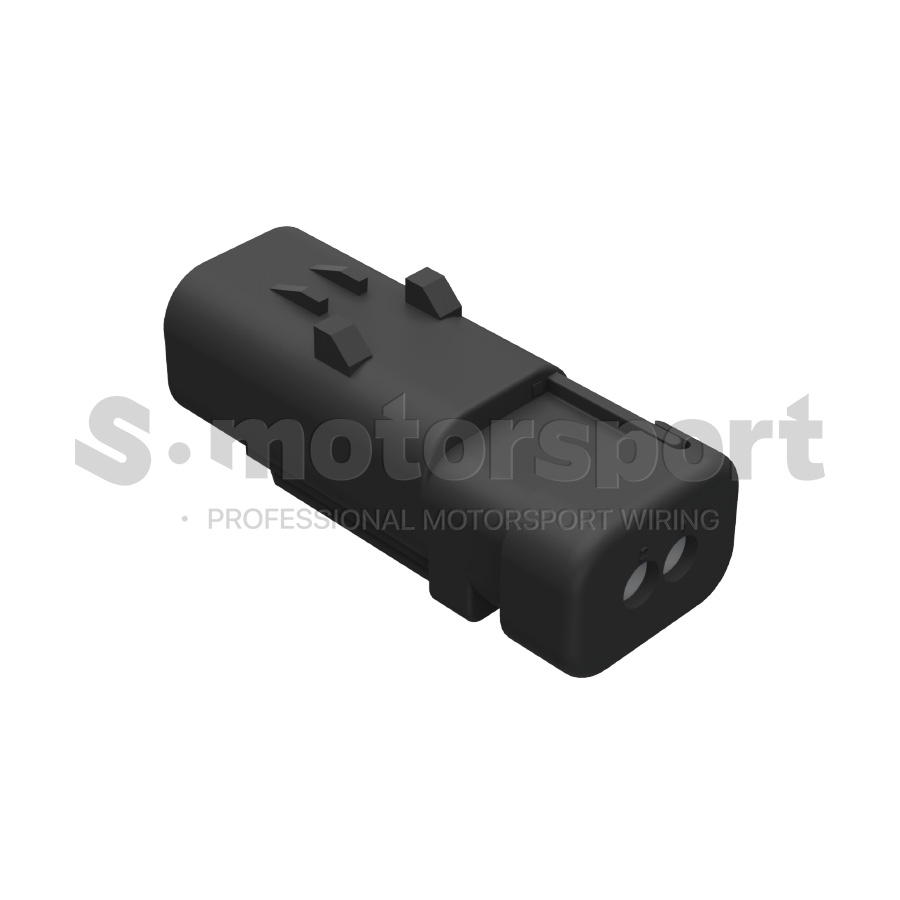

2-х контактный разъем TE AMP | AMPSEAL 16 Series | 776534-1 / AS16-ST-04-02PA-E | Pin
2-х контактный разъем TE AMP | AMPSEAL 16 Series | 776534-1 / AS16-ST-04-02PA-E | In-Line Cap | Keying Code - A / TPA Color - Red / Reduced Seal / Pin (Корпус)
Техническое описание:
- Connector Series - AMPSEAL 16 Series
- Contact Series - AMPSEAL 16 Series / HDSF 16 & Solid Contacts / Deutsch Series
- Connector Style - In-Line Cap
- Number of Positions - 2
- Contact Type - Pin
- Contact Size - 1.5mm
- Contact Current Rating (Max) (A) - 13A
- Wire Seal - Reduced / E-Seal
- Wire Diameter Range - 1.18 - 2.54 mm
- Keying Kode - A
- Housing Color - Black
- TPA Color - Red
- Housing Material - PBT
- Temperature rating: -40 °C to +125 °C
- Water protection - IP67 / IP6K9K
В комплект поставки входит:
- 2-х контактный разъем TE AMP | AMPSEAL 16 Series | 776534-1 / AS16-ST-04-02PA-E | In-Line Cap | Keying Code - A / TPA Color - Red / Reduced Seal / Pin (Корпус) - 1 шт
