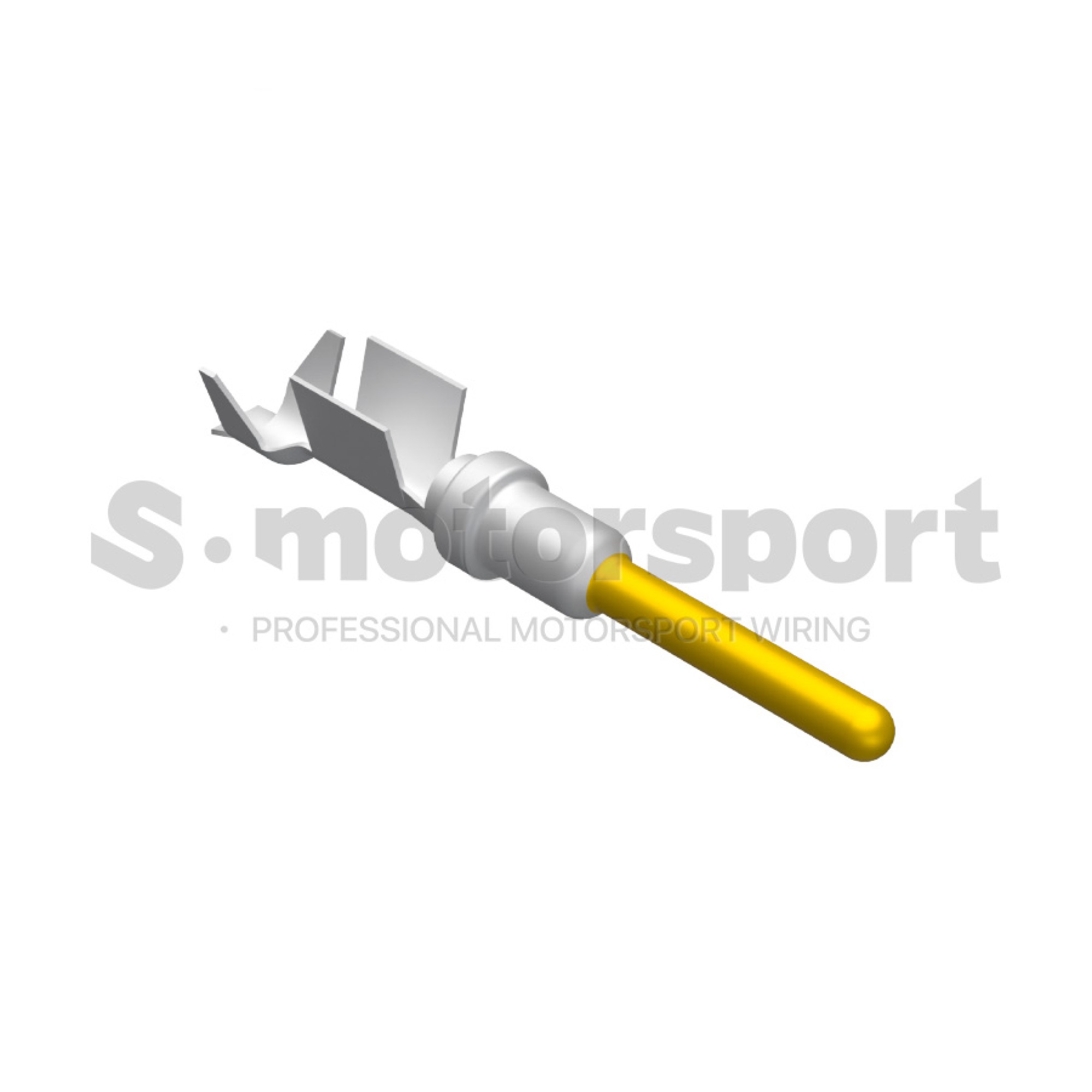

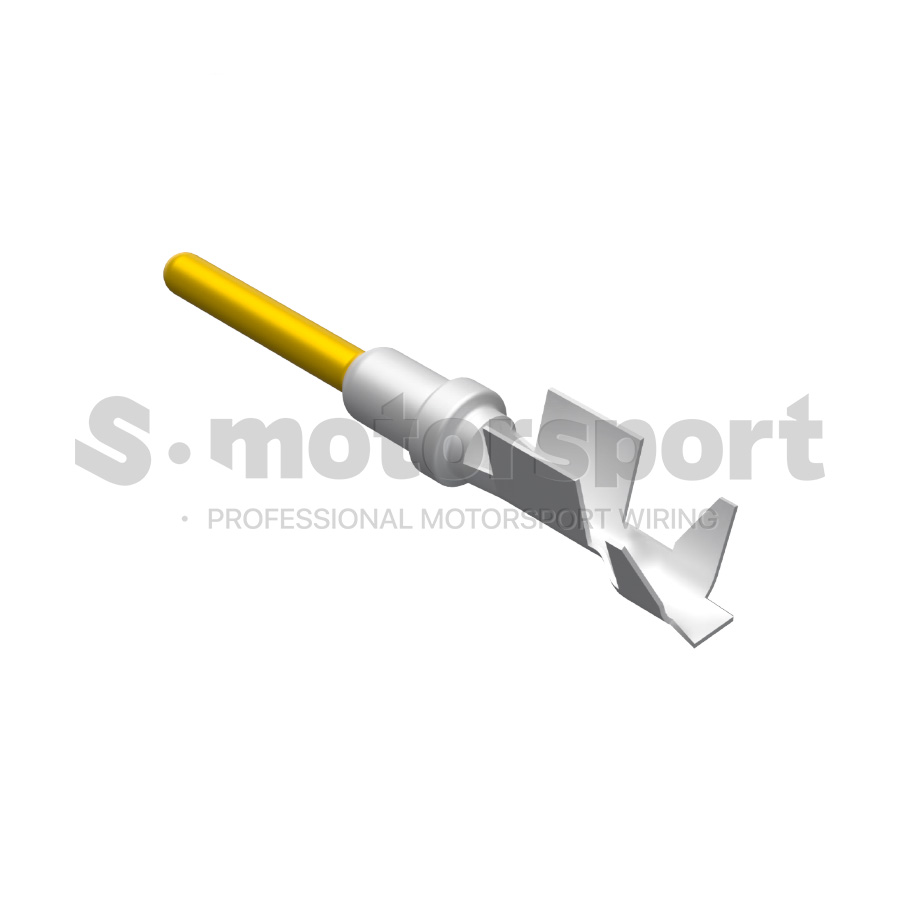

Контакт TE AMP | AMPSEAL 16 Series | HDSF 16 | 2098250-1 | Pin (0.8 - 1.5 mm²) | (18 - 16 AWG)
Контакт TE AMP | AMPSEAL 16 Series | HDSF 16 | 2098250-1 / HDSF-16P-18D-AU | UnSealed / Gold (Au) Plating / Pin (0.8 - 1.5 mm²) | (18 - 16 AWG)
Техническое описание:
- Connector Series - AMPSEAL 16 Series
- Contact Series - AMPSEAL 16 Series / HDSF 16 & Solid Contacts / Deutsch Series
- Contact Fabrication - Stamped & Formed
- Contact Type - Pin
- Contact Size - #16
- Sealed - No / UnSealed
- Wire Seze - 0.8 - 1.5 mm² | 18 - 16 AWG
- Compatible Insulation Diameter - 1.65 - 3.00 mm
- Interface Plating - Gold (Au)
- Contact Current Rating (Max) (A) - 13A
В комплект поставки входит:
- Контакт TE AMP | AMPSEAL 16 Series | HDSF 16 | 2098250-1 / HDSF-16P-18D-AU | UnSealed / Gold (Au) Plating / Pin (0.8 - 1.5 mm²) | (18 - 16 AWG) - 1 шт
Документация >>> TE | AMP | AMPSEAL 16 Series
Документация >>> TE | AMP | AMPSEAL 16 Series | Contacts
Документация >>> TE | AMP | AMPSEAL 16 Series | Technical Manual
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 1924463-1 / 1924463-3
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 776349-1 / 776349-3
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 638078-1 / 638078-3
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 638112-1 / 638112-3
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 2098250-1 / 2098250-3
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 2098252-1 / 2098252-3
