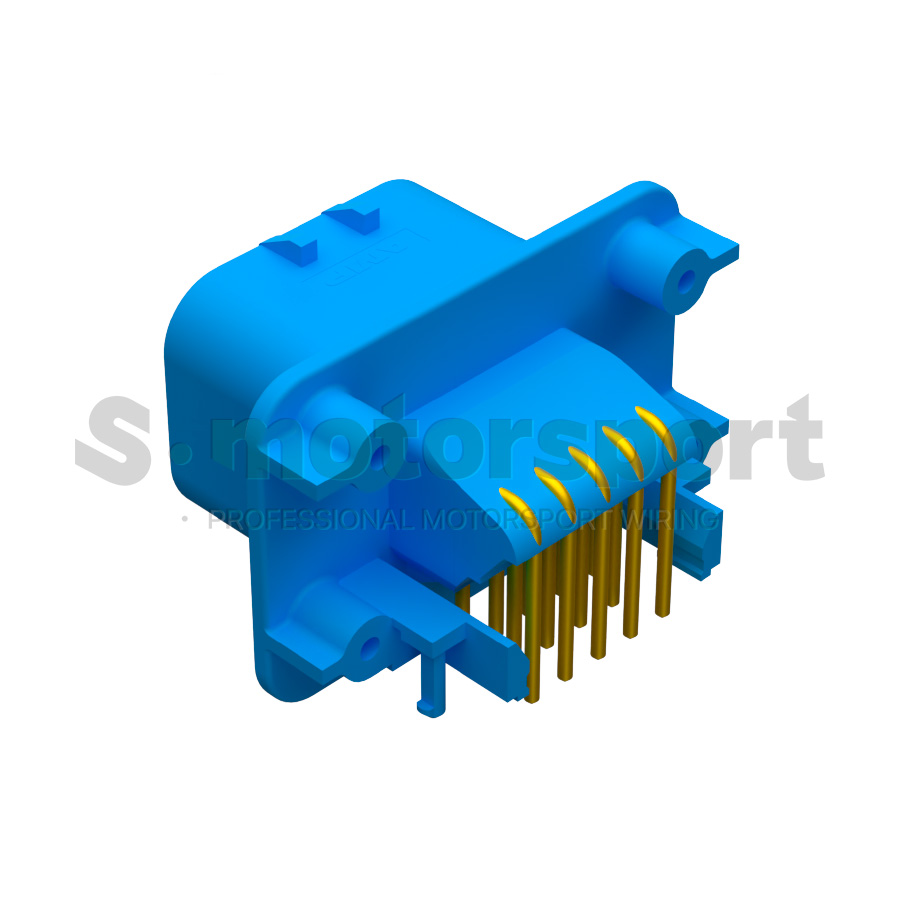

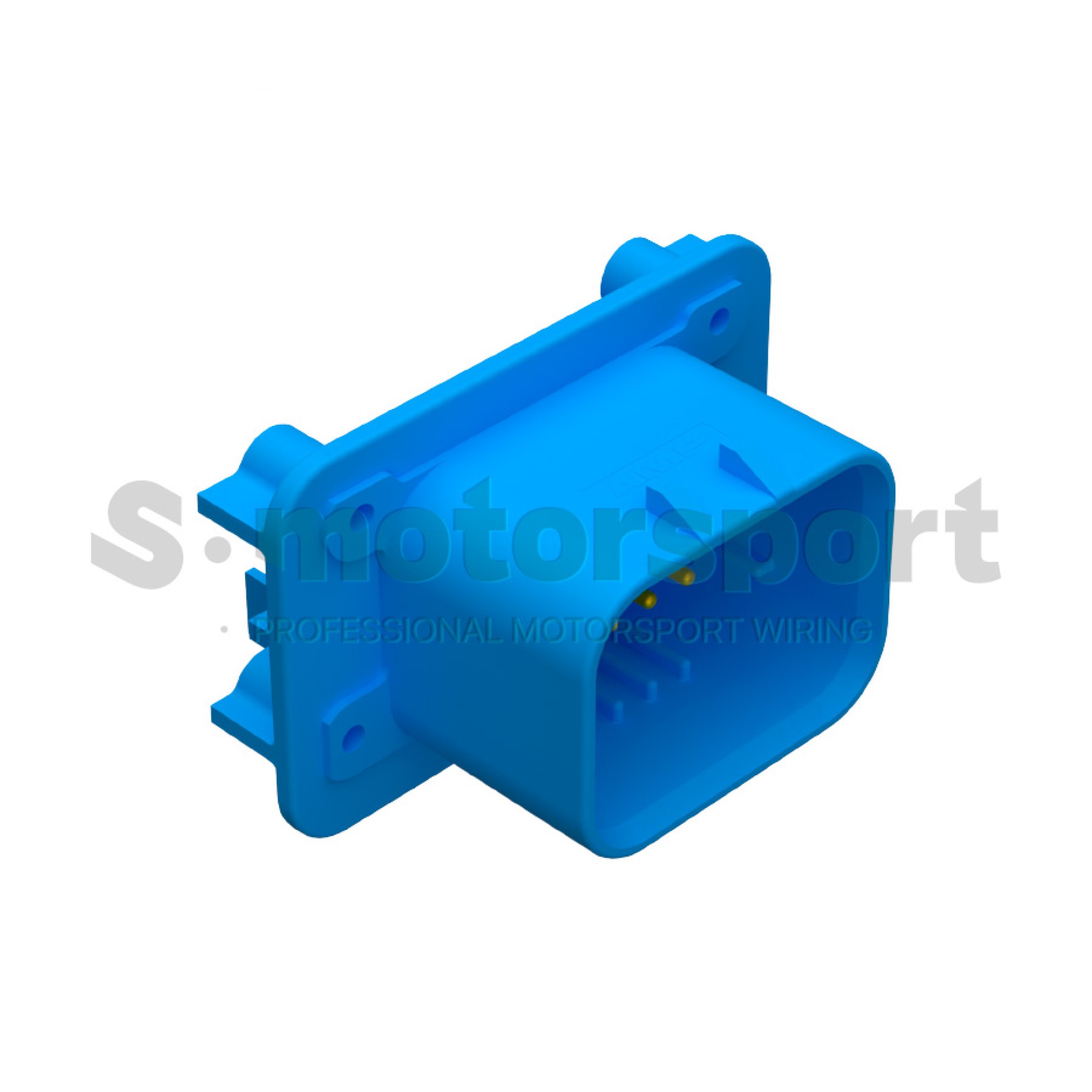

14-ти контактный разъем TE AMP | AMPSEAL Series | 1-776266-5

14-ти контактный разъем TE AMP | AMPSEAL Series | 1-776266-5 | PCB 90° Header / Keying Code - 5 / Color - Blue / Without Seal / Gold (Au) Plating / Pin (Корпус)

Техническое описание:

• Connector Series - AMPSEAL Series
• Contact Series - AMPSEAL 1.3mm Series
• Connector Style - PCB / Without Seal
• PCB Mount Orientation - Right Angle / 90°
• Number of Positions - 14
• Contact Type - Pin
• Contact Size - 1.3mm
• Contact Mating Area Plating Material - Gold (Au)
• Contact Current Rating (Max) (A) - #1.3mm - 17A
• Keying Kode - 5
• Housing Color - Blue
• Housing Material - PBT

• Temperature rating: -40 °C to +105 °C

В комплект поставки входит:

• 14-ти контактный разъем TE AMP | AMPSEAL Series | 1-776266-5 | PCB 90° Header / Keying Code - 5 / Color - Blue / Without Seal / Gold (Au) Plating / Pin (Корпус) - 1 шт

Документация  >>>  TE | AMP | AMPSEAL Series

Документация  >>>  TE | AMP | AMPSEAL Series | 1-776266-5

Документация  >>>  TE | AMP | AMPSEAL Series | Configurations

Документация  >>>  TE | AMP | AMPSEAL Series | Technical Manual

Документация  >>>  TE | AMP | AMPSEAL Series | Ordering Information

Документация  >>>  TE | AMP | AMPSEAL Series | Product Drawings - 8 Way Connectors

Документация  >>>  TE | AMP | AMPSEAL Series | Product Drawings - 14 Way Connectors

Документация  >>>  TE | AMP | AMPSEAL Series | Product Drawings - 23 Way Connectors

Документация  >>>  TE | DEUTSCH | AMPSEAL Series | Product Drawings - 35 Way Connectors
