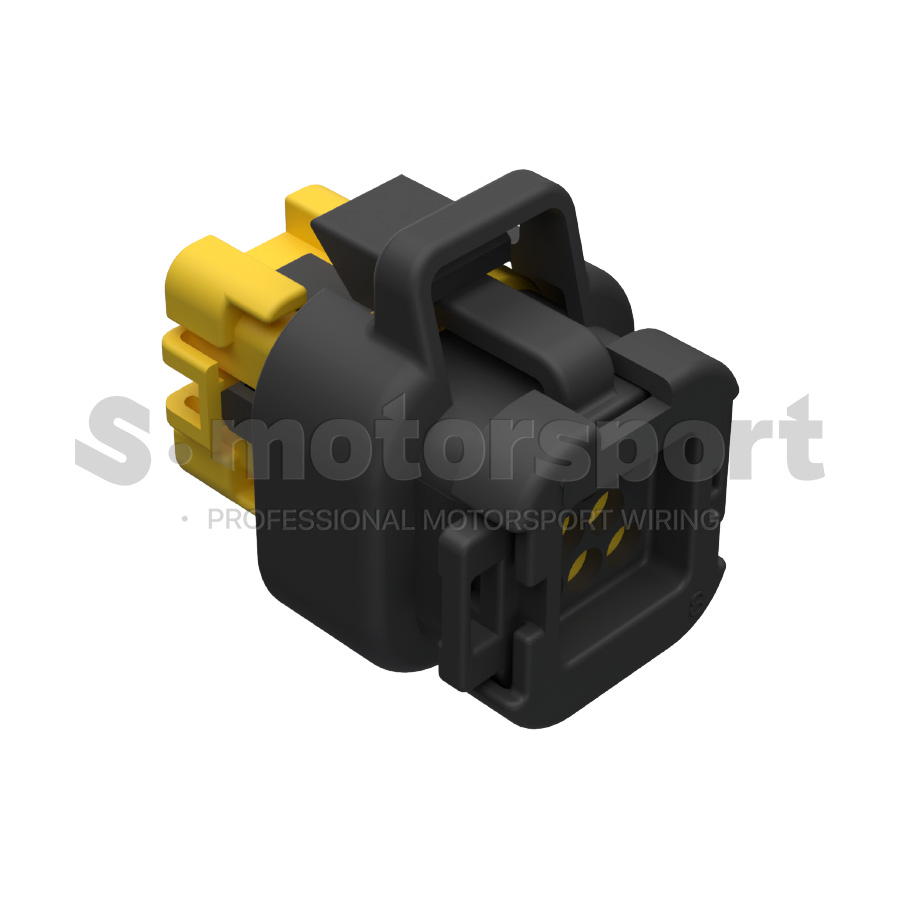

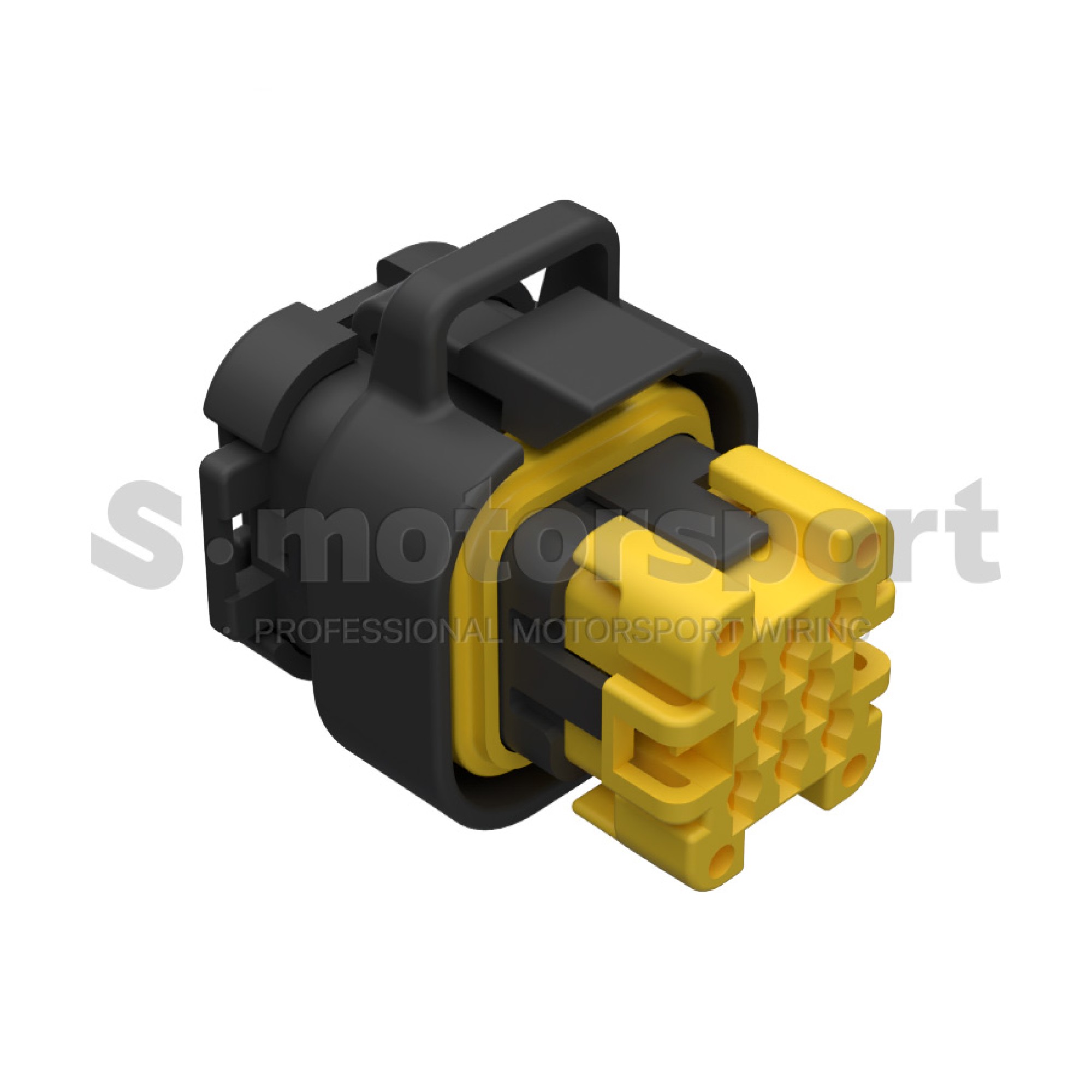

8-ми контактный разъем TE AMP | AMPSEAL Series | 2371882-1

8-ми контактный разъем TE AMP | AMPSEAL Series | 2371882-1 | Receptacle / Keying Code - 1 / Color - Black / Reduced Seal / Socket (Корпус)

Техническое описание:

• Connector Series - AMPSEAL Series
• Contact Series - AMPSEAL 1.3mm Series
• Connector Style - Receptacle
• Number of Positions - 8
• Contact Type - Socket
• Contact Size - 1.3mm
• Contact Current Rating (Max) (A) - #1.3mm Gold Plated - 17A
• Contact Current Rating (Max) (A) - #1.3mm Tin Plated - 8A
• Wire Seal - Reduced
• Wire Size - (0.2 - 0.5 mm²) | (24 - 22 AWG)
• Keying Kode - 1
• Housing Color - Black
• Wedge Lock Color - Yellow
• Wire Seal Color - Light Blue
• Mating Seal Color - Yellow
• Housing Material - PBT

• Temperature rating: -40 °C to +105 °C
• Water protection - IP67 / IP69K

В комплект поставки входит:

• 8-ми контактный разъем TE AMP | AMPSEAL Series | 2371882-1 | Receptacle / Keying Code - 1 / Color - Black / Reduced Seal / Socket (Корпус) - 1 шт

Документация  >>>  TE | DEUTSCH | AMPSEAL Series

Документация  >>>  TE | DEUTSCH | AMPSEAL Series | 2371882-1

Документация  >>>  TE | DEUTSCH | AMPSEAL Series | Configurations

Документация  >>>  TE | DEUTSCH | AMPSEAL Series | Technical Manual

Документация  >>>  TE | DEUTSCH | AMPSEAL Series | Product Drawings - 8-35 Way Connectors / Reduced Wire Seal

Документация  >>>  TE | DEUTSCH | AMPSEAL Series | Contacts

Документация  >>>  TE | DEUTSCH | AMPSEAL Series | Product Drawings - Contacts
