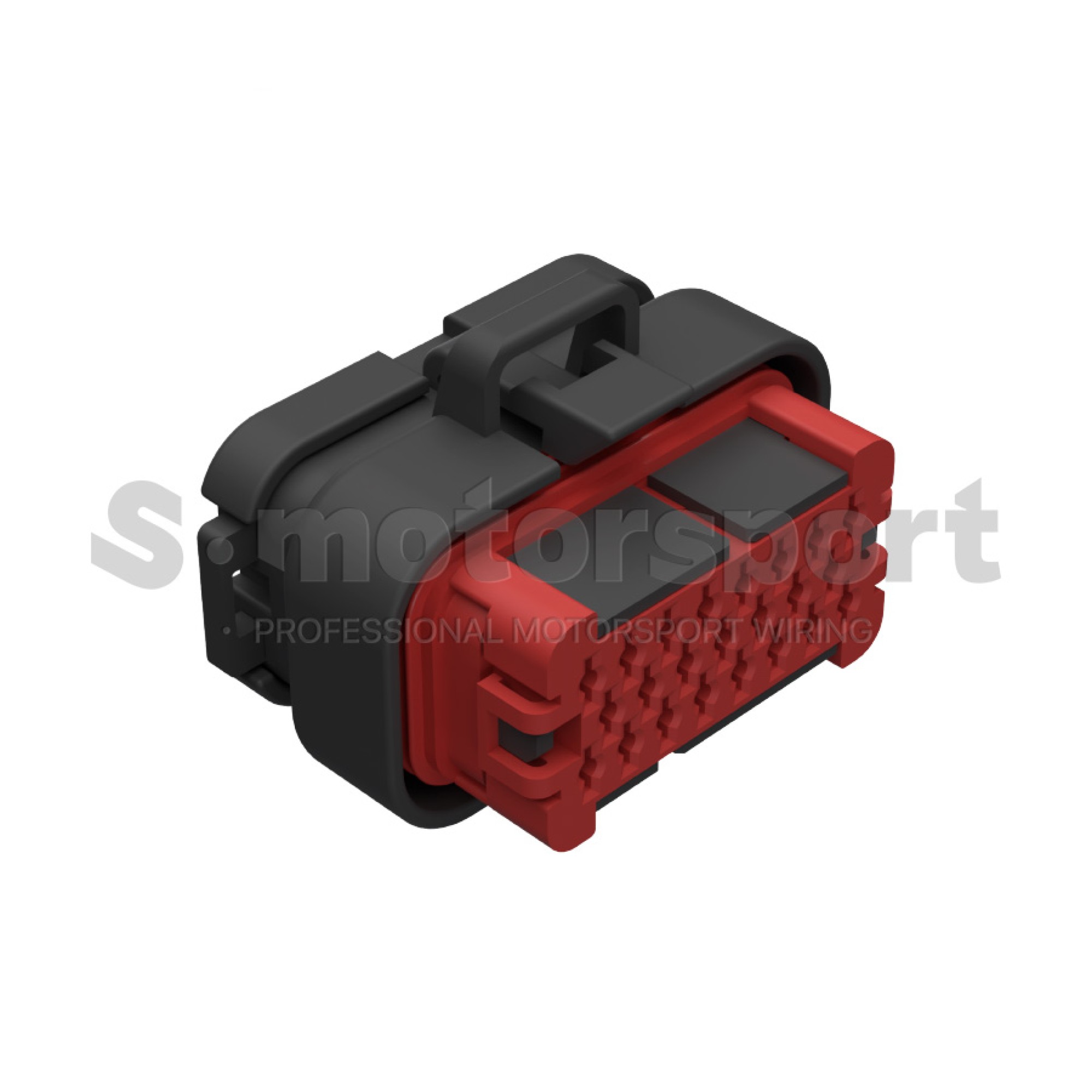

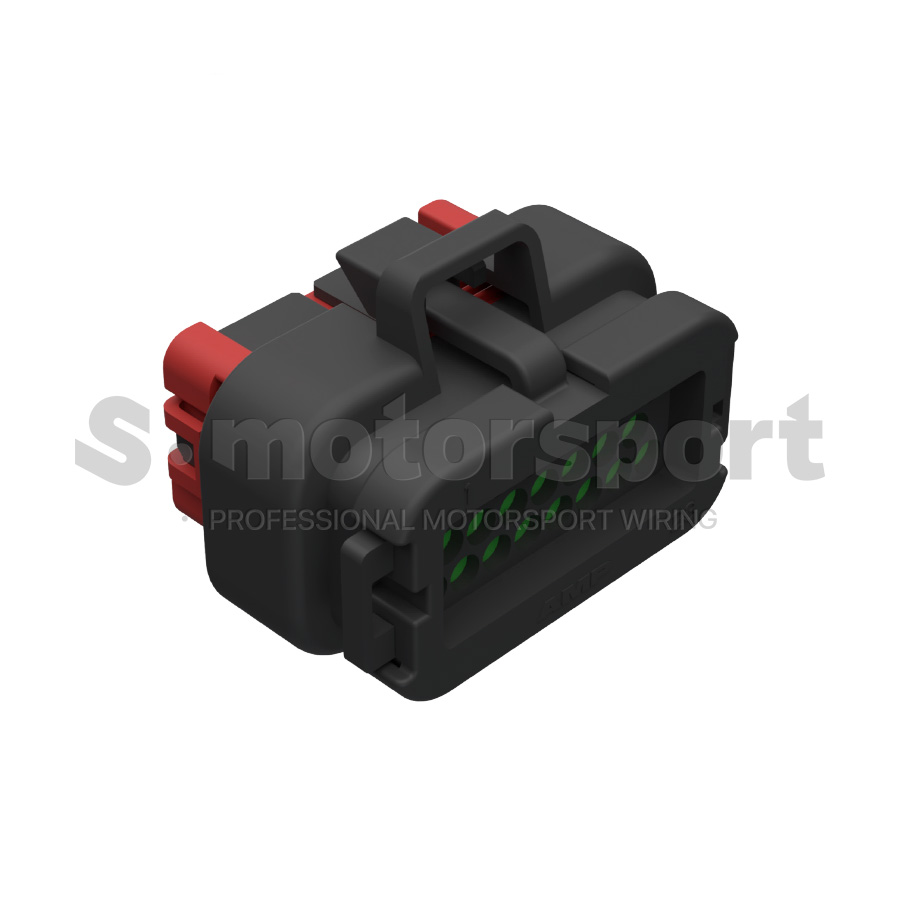

23-х контактный разъем TE AMP | AMPSEAL Series | 770680-3

23-х контактный разъем TE AMP | AMPSEAL Series | 770680-3 | Receptacle / Keying Code - 1 (A) / Color - Black / Standard Seal / Socket (Корпус)

Техническое описание:

• Connector Series - AMPSEAL Series
• Contact Series - AMPSEAL 1.3mm Series
• Connector Style - Receptacle
• Number of Positions - 23
• Contact Type - Socket
• Contact Size - 1.3mm
• Contact Current Rating (Max) (A) - #1.3mm Gold Plated - 17A
• Contact Current Rating (Max) (A) - #1.3mm Tin Plated - 8A
• Wire Seal - Standart
• Wire Size - (0.5 - 1.5 mm²) | (20 - 16 AWG)
• Keying Kode - 1 (A)
• Housing Color - Black
• Wedge Lock Color - Red
• Wire Seal Color - Green
• Mating Seal Color - Red
• Housing Material - PBT

• Temperature rating: -40 °C to +105 °C
• Water protection - IP67 / IP69K

В комплект поставки входит:

• 23-х контактный разъем TE AMP | AMPSEAL Series | 770680-3 | Receptacle / Keying Code - 1 (A) / Color - Black / Standard Seal / Socket (Корпус) - 1 шт

Документация  >>>  TE | AMP | AMPSEAL Series

Документация  >>>  TE | AMP | AMPSEAL Series | 770680-3

Документация  >>>  TE | AMP | AMPSEAL Series | Configurations

Документация  >>>  TE | AMP | AMPSEAL Series | Technical Manual

Документация  >>>  TE | AMP | AMPSEAL Series | Ordering Information

Документация  >>>  TE | AMP | AMPSEAL Series | Product Drawings - 8-35 Way Connectors / Standard Wire Seal

Документация  >>>  TE | AMP | AMPSEAL Series | Contacts

Документация  >>>  TE | AMP | AMPSEAL Series | Product Drawings - Contacts
