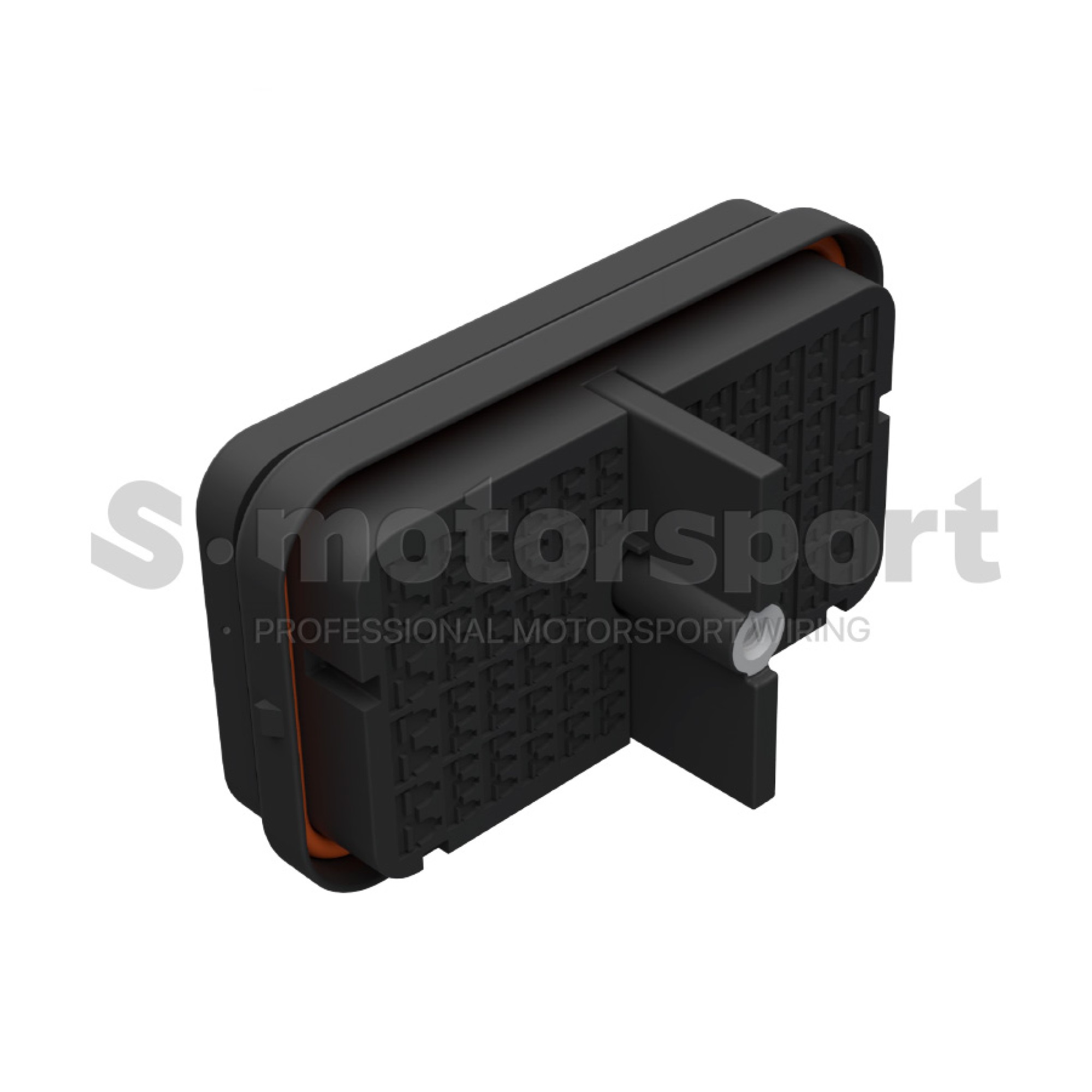

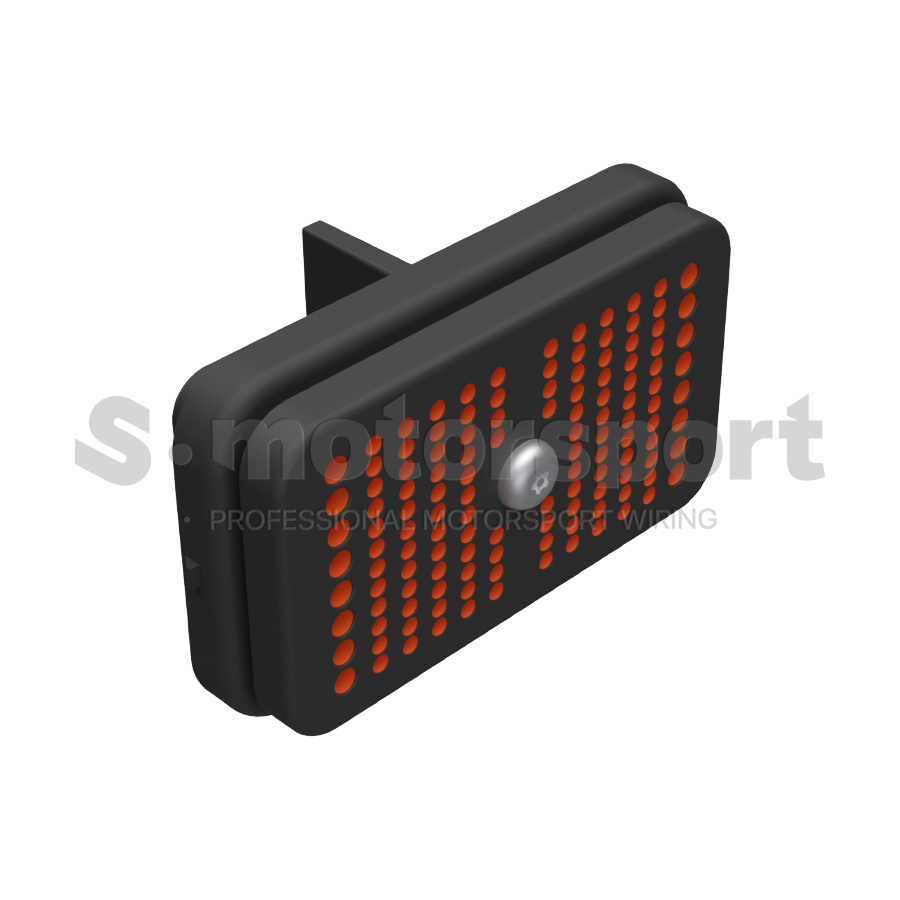

128-ми контактный разъем TE | DEUTSCH | DRB Series | DRB12-128PAE-L018

128-ми контактный разъем TE | DEUTSCH | DRB Series | DRB12-128PAE-L018 | Receptacle / Keying Code - A / Contact Size - #12 #16 / Pin / Wire Seals - E (Корпус)

Техническое описание:

• Connector Series - DRB Series
• Contact Series - Deutsch Series
• Connector Style - Receptacle
• Number of Positions - 128
• Contact Type - Pin
• Contact Size - #12 / #16
• Contact Current Rating (Max) (A) - #12 - 25A / #16 - 13A
• Keying Code - A
• Wire Seal - Standard Seal
• Housing Material - PA GF

• Temperature rating: -55 °C to +125 °C
• Water protection - IP68 / IP6K9K

В комплект поставки входит:

• 128-ми контактный разъем TE | DEUTSCH | DRB Series | DRB12-128PAE-L018 | Receptacle / Keying Code - A / Contact Size - #12 #16 / Pin / Wire Seals - E (Корпус) - 1 шт

Документация  >>>  TE | DEUTSCH | DRB Series | DRB12-128PAE-L018

Документация  >>>  TE | DEUTSCH | DRB Series | Configurations

Документация  >>>  TE | DEUTSCH | DRB Series | Part Numbering System

Документация  >>>  TE | DEUTSCH | DRB Series | Product Drawings - 48 Way Plug Connectors

Документация  >>>  TE | DEUTSCH | DRB Series | Product Drawings - 60 Way Plug Connectors

Документация  >>>  TE | DEUTSCH | DRB Series | Product Drawings - 102 Way Plug Connectors

Документация  >>>  TE | DEUTSCH | DRB Series | Product Drawings - 128 Way Plug Connectors
