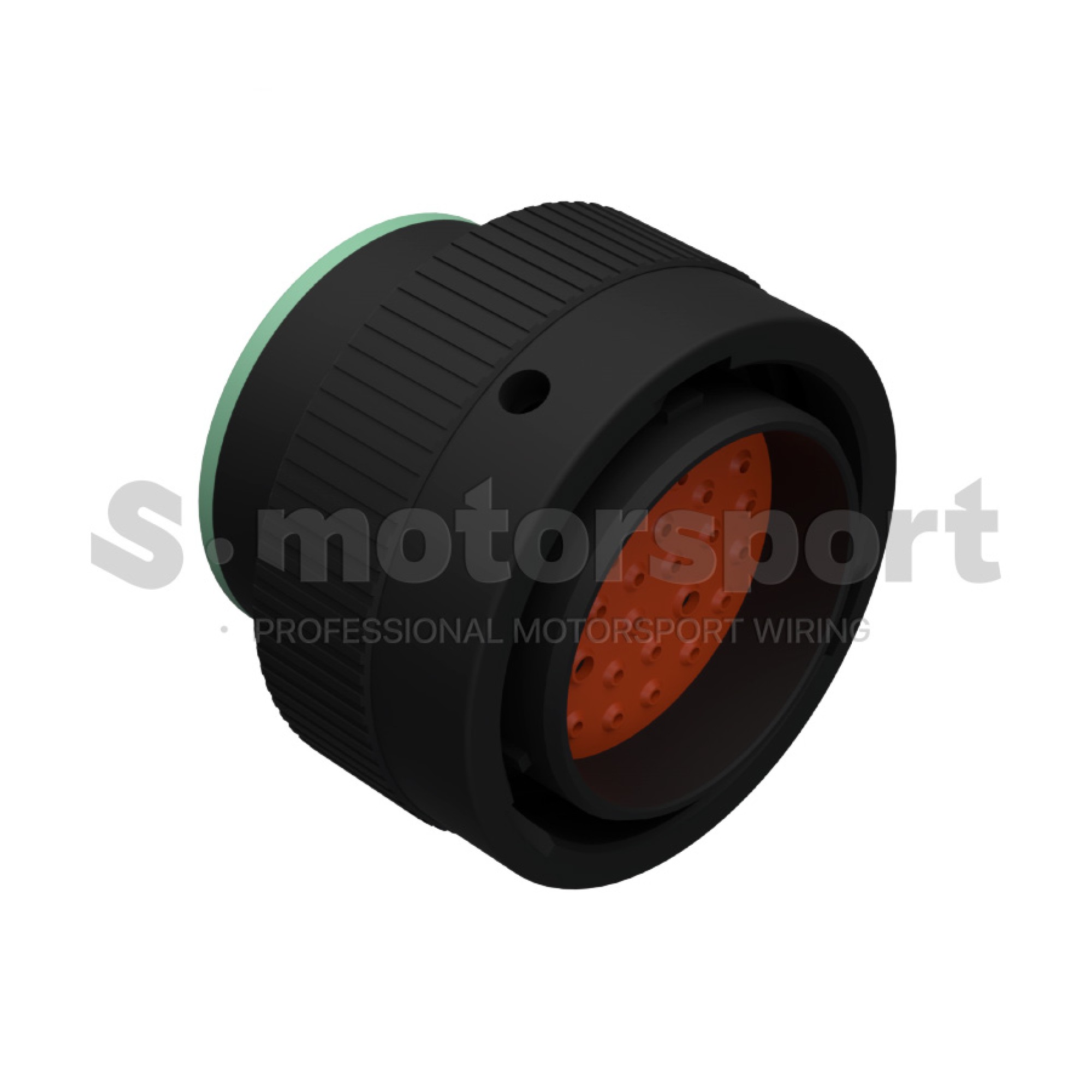

35-ти контактный разъем TE | DEUTSCH | HDP20 Series | HDP26-24-35PN
35-ти контактный разъем TE | DEUTSCH | HDP20 Series | HDP26-24-35PN | Plug / Pin / Shell Size - 24 / Normal Wire Seal - Green Ring (Корпус)
35-ти контактный разъем TE | DEUTSCH | HDP20 Series | HDP26-24-35PN | Plug / Pin / Shell Size - 24 / Normal Wire Seal - Green Ring (Корпус)
Техническое описание:
- Connector Series - HDP20 Series
- Contact Series - Deutsch Series
- Connector Style - Multi-Pin / Standart Plug
- Connector Material - PA 66 GF
- Number of Positions - 35
- Shell Size - 24
- Contact Type - Pin
- Contact Size - #16 x 3 / #20 x 32
- Contact Current Rating (Max) (A) - 13 / 7.5
- Wire Seal - N / Normal Position Wire Seal (Green Ring)
- Temperature rating: -55 °C to +125 °C
- Water protection - IP67
В комплект поставки входит:
- 35-ти контактный разъем TE | DEUTSCH | HDP20 Series | HDP26-24-35PN | Plug / Pin / Shell Size - 24 / Normal Wire Seal - Green Ring (Корпус) - 1 шт
Документация >>> TE | DEUTSCH | HDP26-24-35PN
Документация >>> TE | DEUTSCH | HDP20 Configurations
Документация >>> TE | DEUTSCH | HD30 Part Numbering System
