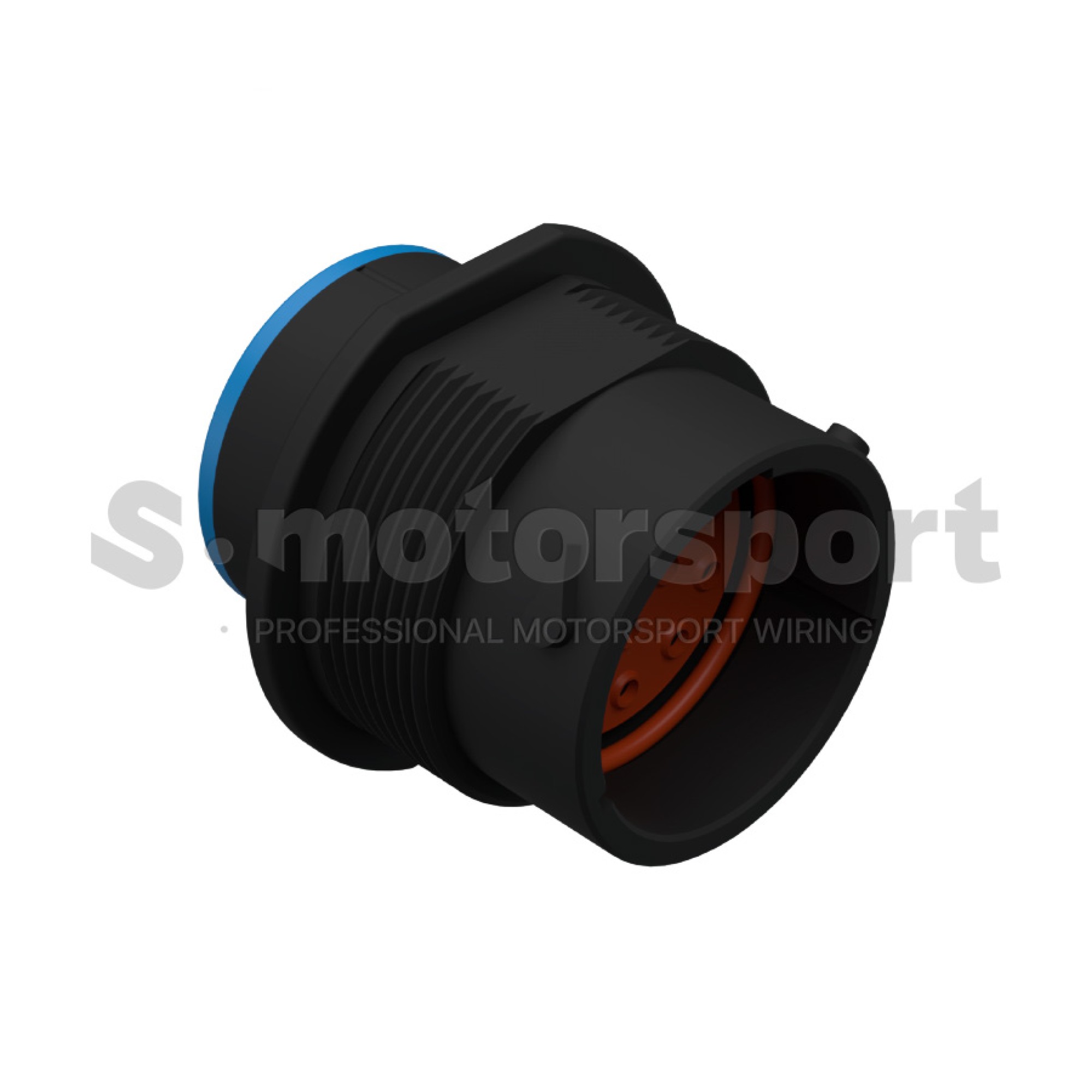

14-ти контактный разъем TE | DEUTSCH | HDP20 Series | HDP24-18-14PE
14-ти контактный разъем TE | DEUTSCH | HDP20 Series | HDP24-18-14PE | Receptacle / Pin / Shell Size - 18 / Extra Thin Wall Wire Seals - Blue Ring (Корпус)
14-ти контактный разъем TE | DEUTSCH | HDP20 Series | HDP24-18-14PE | Receptacle / Pin / Shell Size - 18 / Extra Thin Wall Wire Seals - Blue Ring (Корпус)
Техническое описание:
- Connector Series - HDP20 Series
- Contact Series - Deutsch Series
- Connector Style - Receptacle
- Connector Material - PA 66 GF
- Number of Positions - 14
- Shell Size - 18
- Contact Type - Pin
- Contact Size - #16 x 14
- Contact Current Rating (Max) (A) - 13
- Wire Seal - Extra Thin Wall Wire Seals (Blue Ring)
- Temperature rating: -55 °C to +125 °C
- Water protection - IP67
В комплект поставки входит:
- 14-ти контактный разъем TE | DEUTSCH | HDP20 Series | HDP24-18-14PE | Receptacle / Pin / Shell Size - 18 / Extra Thin Wall Wire Seals - Blue Ring (Корпус) - 1 шт
Документация >>> TE | DEUTSCH | HDP24-18-14PE
Документация >>> TE | DEUTSCH | HDP20 Configurations
Документация >>> TE | DEUTSCH | HD30 Part Numbering System
