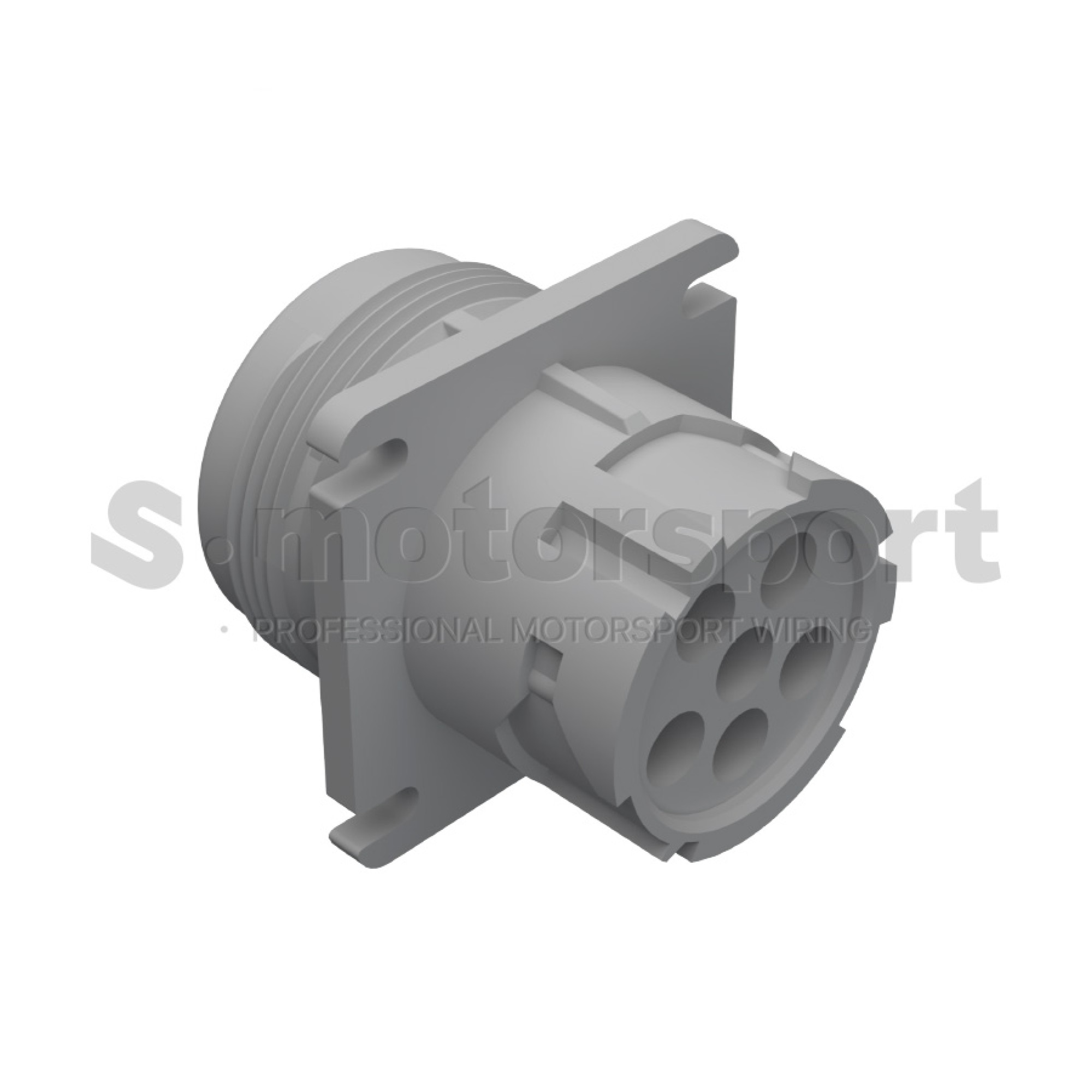

6-ти контактный разъем TE | DEUTSCH | HD10 Series | HD10-6-12P
6-ти контактный разъем TE | DEUTSCH | HD10 Series | HD10-6-12P | Flange / Pin / Contact Size - #12 / Threaded Rear / Standard Seal (Корпус)
6-ти контактный разъем TE | DEUTSCH | HD10 Series | HD10-6-12P | Flange / Pin / Contact Size - #12 / Threaded Rear / Standard Seal (Корпус)
Техническое описание:
- Connector Series - HD10 Series
- Contact Series - Deutsch Series
- Connector Style - Flange
- Number of Positions - 6
- Contact Type - Pin
- Contact Size - #12 size - 25A
- Contact Current Rating (Max) (A) - #12 size x 6
- Wire Seal - Standart Seal
- Housing Material - PA GF
- Temperature rating: -55 °C to +125 °C
- Water protection - IP68
В комплект поставки входит:
- 6-ти контактный разъем TE | DEUTSCH | HD10 Series | HD10-6-12P | Flange / Pin / Contact Size - #12 / Threaded Rear / Standard Seal (Корпус) - 1 шт
Документация >>> TE | DEUTSCH | HD10 Series | HD10-6-12P
Документация >>> TE | DEUTSCH | HD10 Configurations
Документация >>> TE | DEUTSCH | HD10 Part Numbering System
