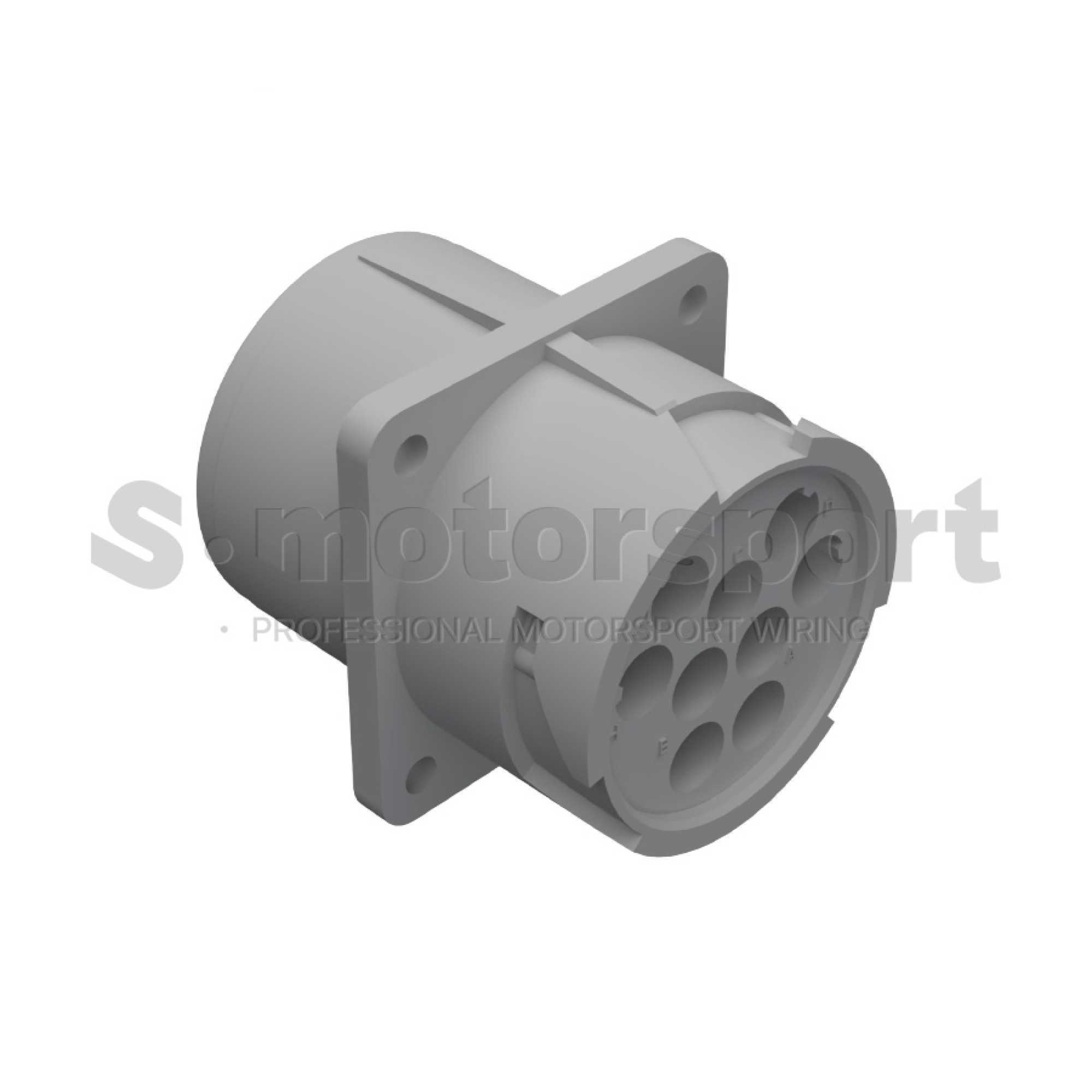

9-ти контактный разъем TE | DEUTSCH | HD10 Series | HD10-9-16P
9-ти контактный разъем TE | DEUTSCH | HD10 Series | HD10-9-16P | Flange / Pin / Contact Size - #16 / Non-Threaded Rear / Standard Seal (Корпус)
9-ти контактный разъем TE | DEUTSCH | HD10 Series | HD10-9-16P | Flange / Pin / Contact Size - #16 / Non-Threaded Rear / Standard Seal (Корпус)
Техническое описание:
- Connector Series - HD10 Series
- Contact Series - Deutsch Series
- Connector Style - Flange
- Number of Positions - 9
- Contact Type - Pin
- Contact Size - #16 size - 13A
- Contact Current Rating (Max) (A) - #16 size x 9
- Wire Seal - Standart Seal
- Housing Material - PA GF
- Temperature rating: -55 °C to +125 °C
- Water protection - IP68
В комплект поставки входит:
- 9-ти контактный разъем TE | DEUTSCH | HD10 Series | HD10-9-16P | Flange / Pin / Contact Size - #16 / Non-Threaded Rear / Standard Seal (Корпус) - 1 шт
Документация >>> TE | DEUTSCH | HD10 Series | HD10-9-16P
Документация >>> TE | DEUTSCH | HD10 Configurations
Документация >>> TE | DEUTSCH | HD10 Part Numbering System
