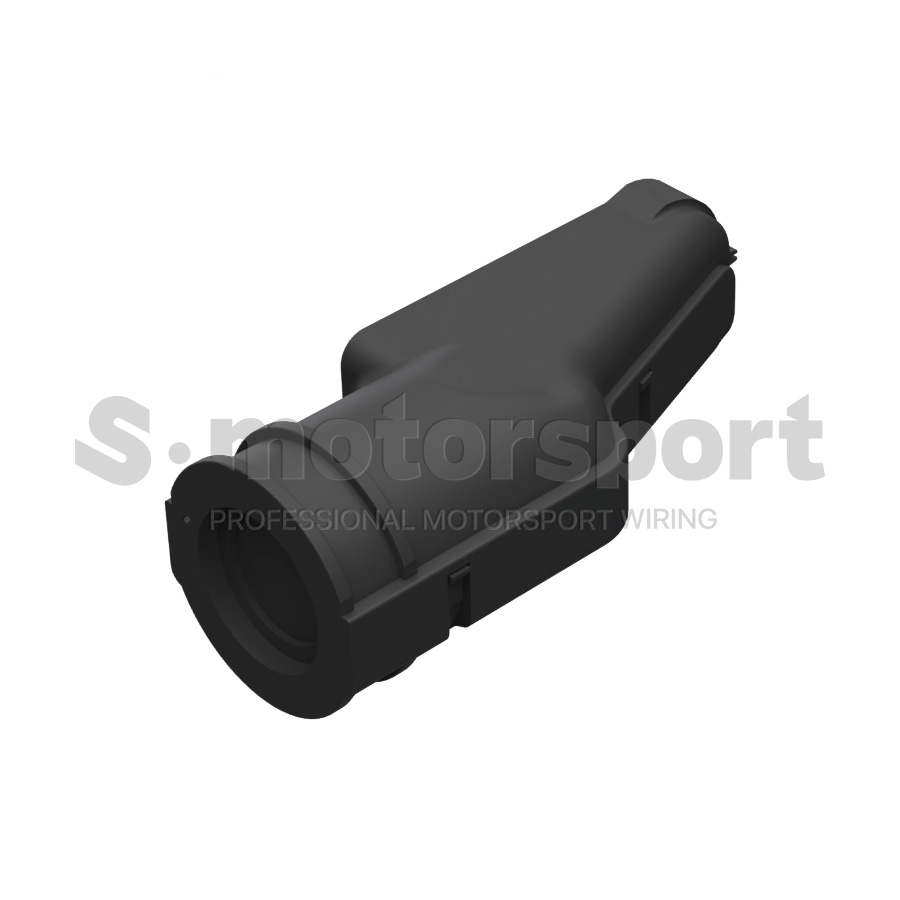

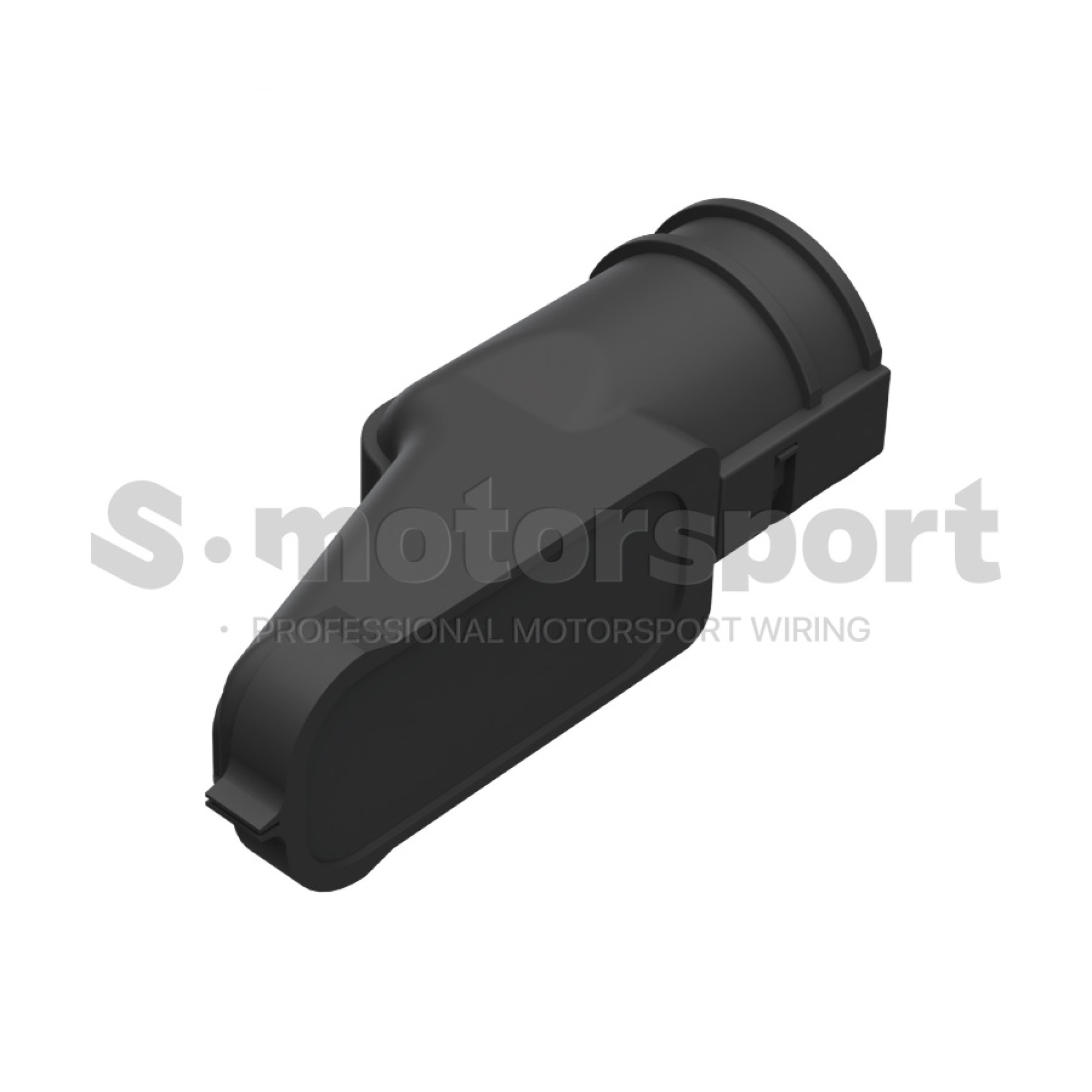

Бэкшел угловой TE | DEUTSCH | STRIKE Series | SRK-BS-MD-90-001
Бэкшел угловой TE | DEUTSCH | STRIKE Series | SRK-BS-MD-90-001 | Angle 90° Backshell / Cable Exit Angle - 90° / for 32 Way Connectors / Convoluted Tubing - NW17 & 22
Бэкшел угловой TE | DEUTSCH | STRIKE Series | SRK-BS-MD-90-001 | Angle 90° Backshell / Cable Exit Angle - 90° / for 32 Way Connectors / Convoluted Tubing - NW17 & 22
Техническое описание:
- Connector Series - STRIKE Series
- For Connector Style - Plugs / Receptacle
- Cable Exit Angle - 90°
- Convoluted Tubing - NW17 & 22
- Number of Positions - 32
- Shell Size - MD / Medium
- Housing Material - PBT
- Temperature rating: -55 °C to +125 °C
В комплект поставки входит:
- Бэкшел угловой TE | DEUTSCH | STRIKE Series | SRK-BS-MD-90-001 | Angle 90° Backshell / Cable Exit Angle - 90° / for 32 Way Connectors / Convoluted Tubing - NW17 & 22 - 1 шт
Документация >>> TE | DEUTSCH | STRIKE Series | SRK-BS-MD-90-001
Документация >>> TE | DEUTSCH | STRIKE Series | Configurations
Документация >>> TE | DEUTSCH | STRIKE Series | Technical Manual
Документация >>> TE | DEUTSCH | STRIKE Series | Product Drawings - SRK-BS-MD-90-XXX
