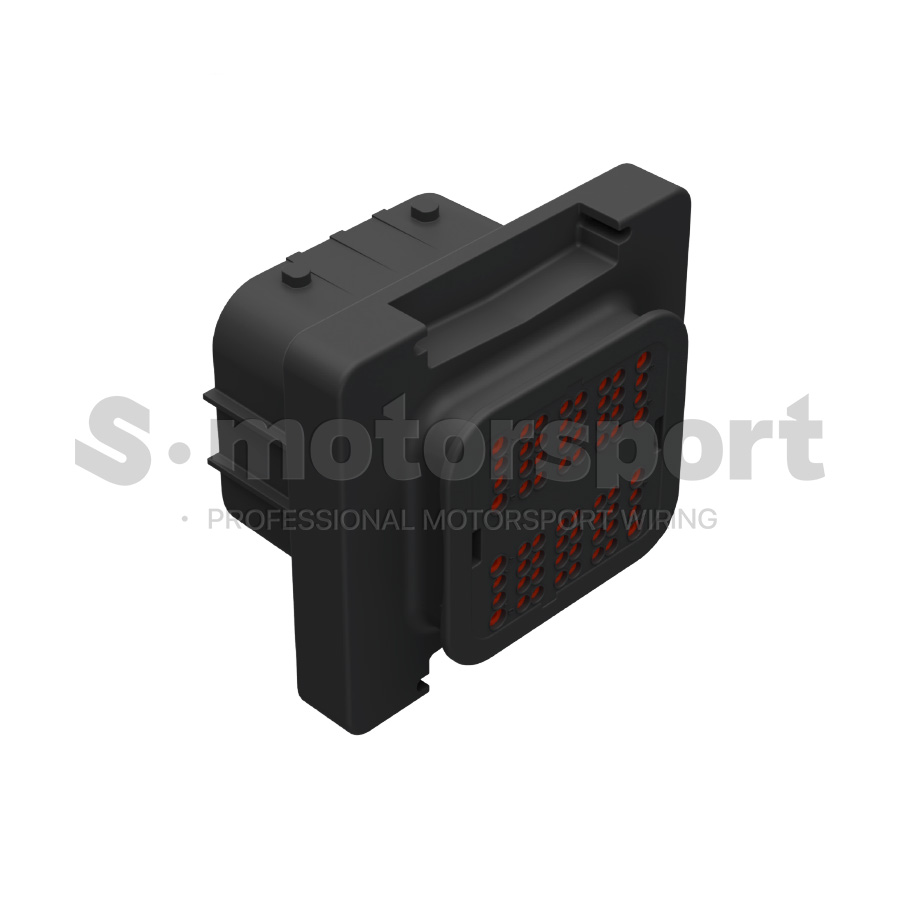

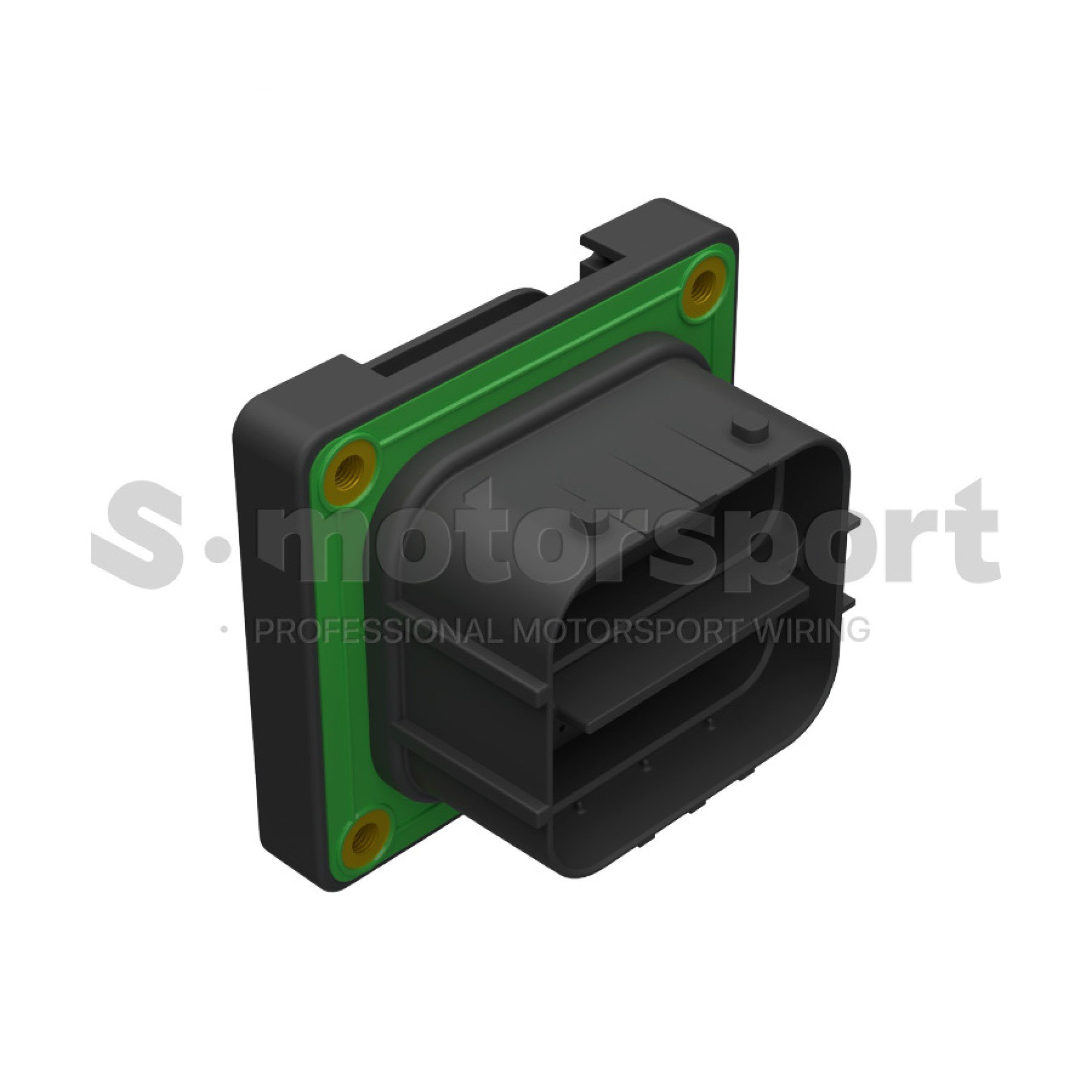

64-х контактный разъем TE | DEUTSCH | STRIKE Series | SRK02-FLI-64A-001

64-х контактный разъем TE | DEUTSCH | STRIKE Series | SRK02-FLI-64A-001 | Receptacle Flange / Shell Size - FL / Keying Code - I / Contact Size - #16 #20 / Pin (Корпус)

Техническое описание:

• Connector Series - STRIKE Series
• Contact Series - Deutsch Series
• Connector Style - Receptacle Flange
• Connector Mounting Type - Panel Mount
• Number of Positions - 64
• Contact Type - Pin
• Contact Size - #16 / #20
• Contact Current Rating (Max) (A) - #16 size - 13A / #20 - 7.5A
• Shell Size - FL / Full

• Keying Kode - I
• Housing Material - PBT

• Temperature rating: -55 °C to +125 °C
• Water protection - IP68 / IP6K9K

В комплект поставки входит:

• 64-х контактный разъем TE | DEUTSCH | STRIKE Series | SRK02-FLI-64A-001 | Receptacle Flange / Shell Size - FL / Keying Code - I / Contact Size - #16 #20 / Pin (Корпус) - 1 шт

Документация  >>>  TE | DEUTSCH | STRIKE Series | SRK02-FLI-64A-001

Документация  >>>  TE | DEUTSCH | STRIKE Series | Configurations

Документация  >>>  TE | DEUTSCH | STRIKE Series | Part Numbering System

Документация  >>>  TE | DEUTSCH | STRIKE Series | Technical Manual

Документация  >>>  TE | DEUTSCH | STRIKE Series | Product Drawings - 34 Way Connectors

Документация  >>>  TE | DEUTSCH | STRIKE Series | Product Drawings - 64 Way Connectors
