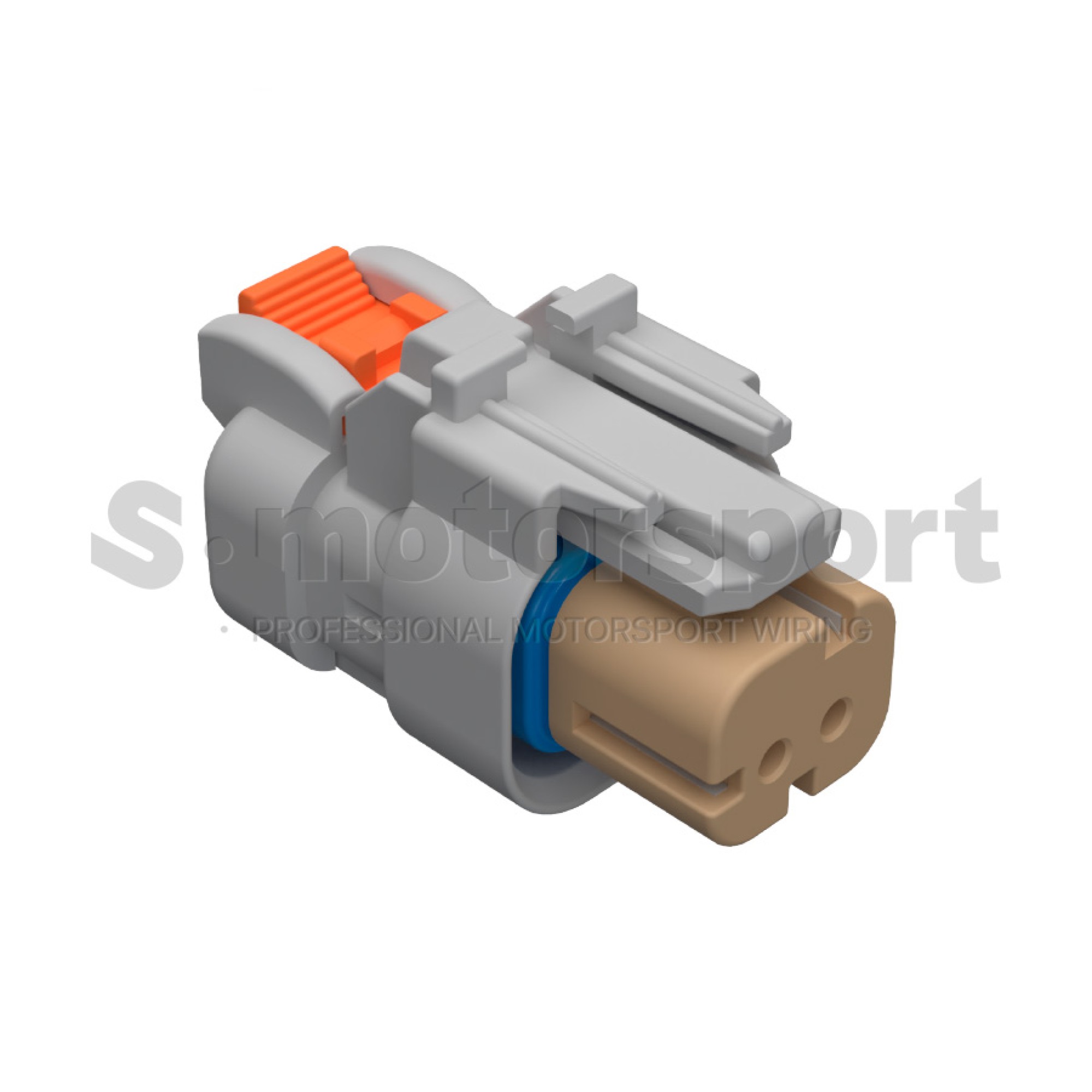

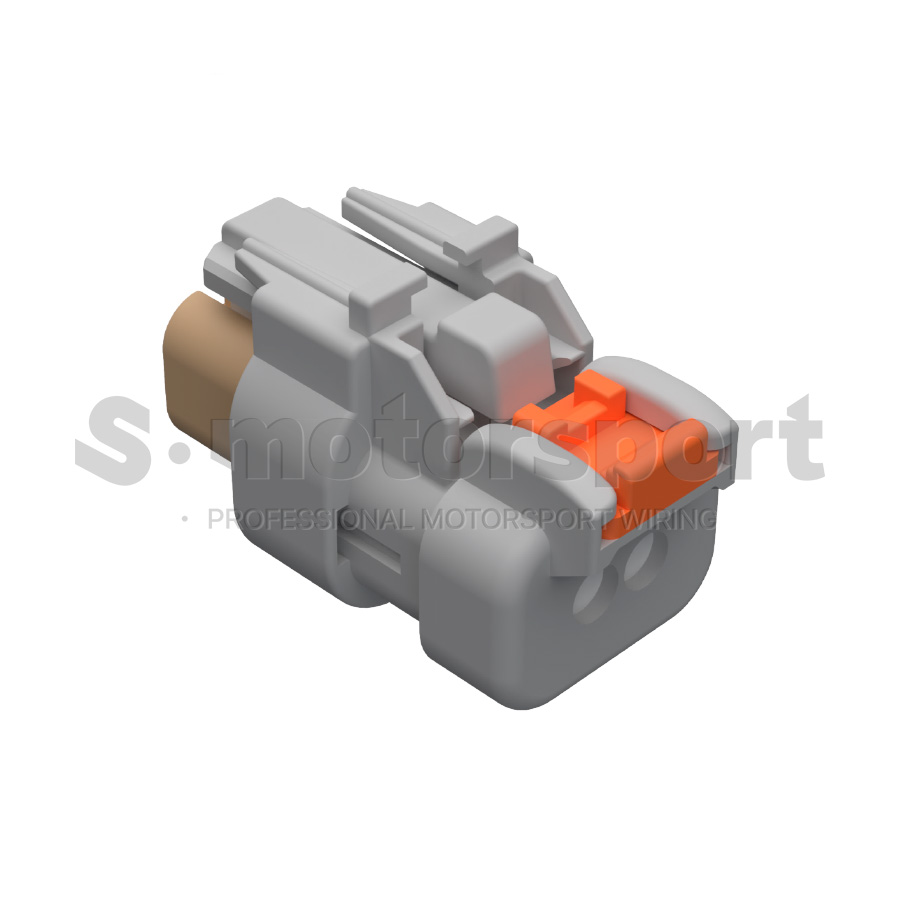

2-х контактный разъем TE AMP | AMPSEAL 16 Series | 2320932-1 / AS16-HT-06-02SA-E | Socket

2-х контактный разъем TE AMP | AMPSEAL 16 Series | 2320932-1 / AS16-HT-06-02SA-E | High Temp Plug / Keying Code - A / TPA Color - Tan / Reduced Seal / Socket (Корпус)

Запросить цену

2-х контактный разъем TE AMP | AMPSEAL 16 Series | 2320932-1 / AS16-HT-06-02SA-E | High Temp Plug / Keying Code - A / TPA Color - Tan / Reduced Seal / Socket (Корпус)

Техническое описание:

Connector Series - AMPSEAL 16 Series
Contact Series - AMPSEAL 16 Series / HDSF 16 & Solid Contacts
Connector Style - High Temperature Plug
Number of Positions - 2

Contact Type - Socket

Contact Size - 1.5mm
Contact Current Rating (Max) (A) - 13A
Wire Seal - Reduced / E-Seal
Wire Diameter Range - 1.30 - 2.54 mm
Keying Kode - A
Housing Color - Gray
TPA Color - Tan
Housing Material - PBT

Temperature rating: -40 °C to +150 °C

Water protection - IP67 / IP6K9K

В комплект поставки входит:

2-х контактный разъем TE AMP | AMPSEAL 16 Series | 2320932-1 / AS16-HT-06-02SA-E | High Temp Plug / Keying Code - A / TPA Color - Tan / Reduced Seal / Socket (Корпус) - 1 шт

Документация >>> TE | AMP | AMPSEAL 16 Series | 2320932-1 / AS16-HT-06-02SA-E

Документация >>> TE | AMP | AMPSEAL 16 Series | High Temperature Connectors Applications

Документация >>> TE | AMP | AMPSEAL 16 Series | Configurations

Документация >>> TE | AMP | AMPSEAL 16 Series | Ordering Information

Документация >>> TE | AMP | AMPSEAL 16 Series | Part Numbering System

Документация >>> TE | AMP | AMPSEAL 16 Series | Technical Manual

Документация >>> TE | AMP | AMPSEAL 16 Series | Contacts

Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 2 Way HT Plug Connectors / Reduced Wire Seal

Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 3 Way HT Plug Connectors / Reduced Wire Seal

Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 4 Way HT Plug Connectors / Reduced Wire Seal

Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 6 Way HT Plug Connectors / Reduced Wire Seal

Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 8 Way HT Plug Connectors / Reduced Wire Seal
