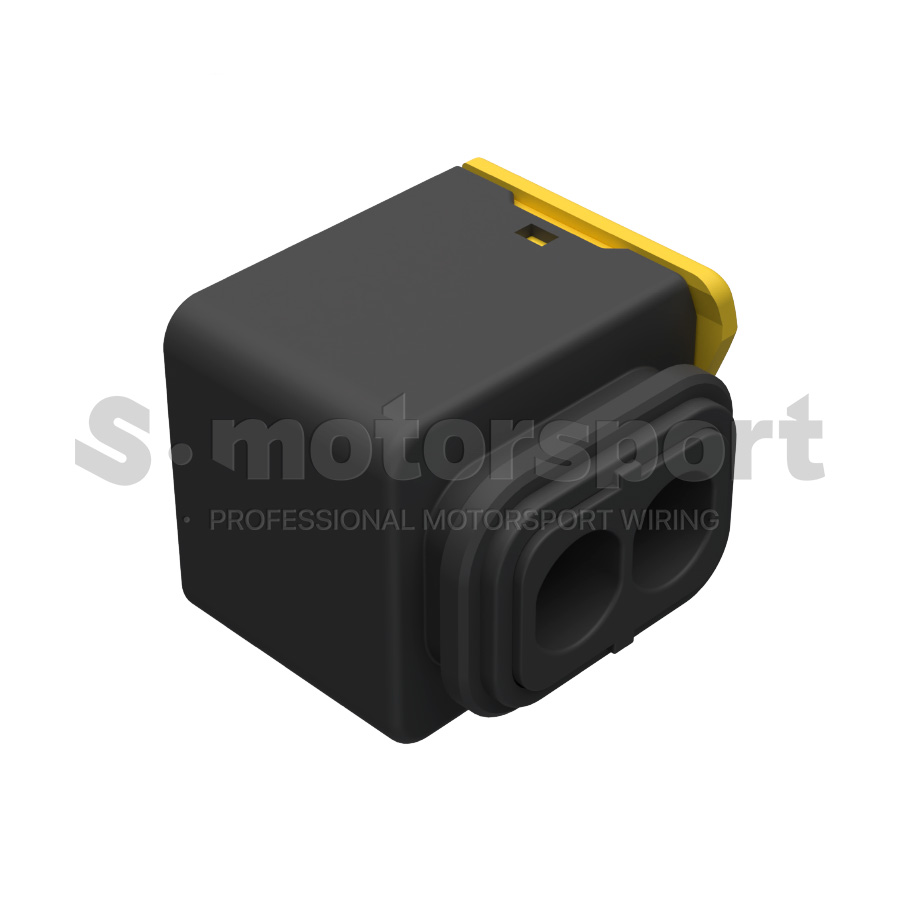

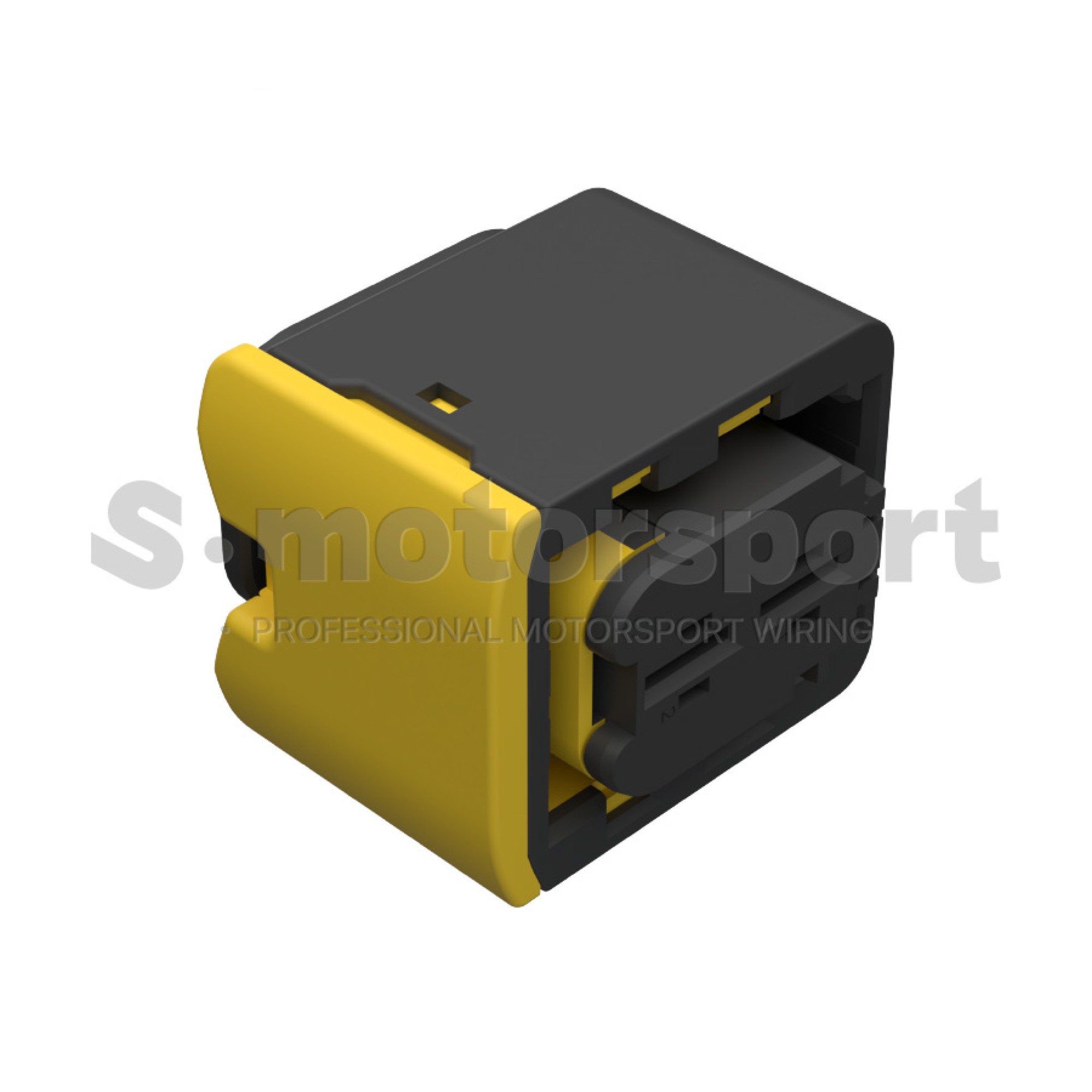

2-х контактный разъем TE AMP | HDSCS Series | MCP 6.3/4.8K Contact | 1-1564542-1

2-х контактный разъем TE AMP | HDSCS Series | MCP 6.3/4.8K Contact | Sealed | 1-1564542-1 | Receptacle / Group - C / Keying Code - Black / Socket (Корпус)

Техническое описание:

• Connector Series - HDSCS Series | Group C
• Contact Series - MCP 6.3/4.8K Series
• Connector Style - Receptacle
• Number of Positions - 2
• Keying Code - A / Black
• Contact Type - Socket
• Contact Size - #6.3/4.8K
• Contact Current Rating (Max) (A) - #6.3/4.8K size - 40A
• Housing Material - PBT GF
• Temperature rating: -40 °C to +140 °C
• Water protection - IP67

В комплект поставки входит:

• 2-х контактный разъем TE AMP | HDSCS Series | MCP 6.3/4.8K Contact | Sealed | 1-1564542-1 | Receptacle / Group - C / Keying Code - Black / Socket (Корпус) - 1 шт

Документация  >>>  TE | HDSCS Series | 1-1564542-1

Документация  >>>  TE | HDSCS Series | Group C | Configurations

Документация  >>>  TE | HDSCS Series | Product Drawings

Документация  >>>  TE | HDSCS Series | Technical Manual

Документация  >>>  TE | HDSCS Series | MCP Contact
