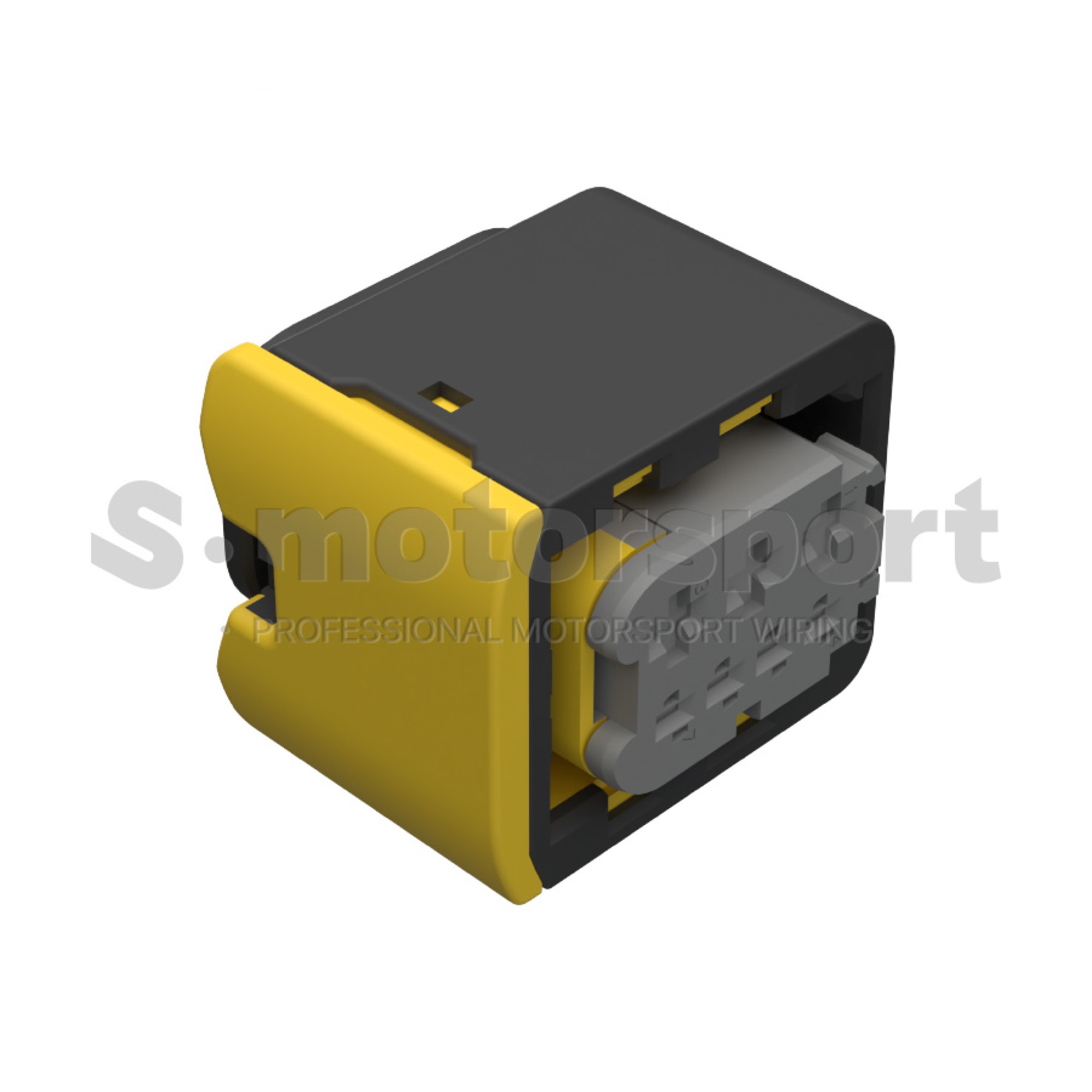

7-ми контактный разъем TE AMP | HDSCS Series | MCP 1.5K/2.8 Contact | 2-1418480-1
7-ми контактный разъем TE AMP | HDSCS Series | MCP 1.5K/2.8 Contact | Sealed | 2-1418480-1 | Receptacle / Group - C / Keying Code - Gray / Socket (Корпус)
7-ми контактный разъем TE AMP | HDSCS Series | MCP 1.5K/2.8 Contact | Sealed | 2-1418480-1 | Receptacle / Group - C / Keying Code - Gray / Socket (Корпус)
Техническое описание:
- Connector Series - HDSCS Series | Group C
- Contact Series - MCP 1.5K/2.8 Series
- Connector Style - Receptacle
- Number of Positions - 7
- Keying Code - C / Gray
- Contact Type - Socket
- Contact Size - #1.5K/2.8
- Contact Current Rating (Max) (A) - #1.5K/2.8 size - 40A
- Housing Material - PBT GF
- Temperature rating: -40 °C to +140 °C
- Water protection - IP67
В комплект поставки входит:
- 7-ми контактный разъем TE AMP | HDSCS Series | MCP 1.5K/2.8 Contact | Sealed | 2-1418480-1 | Receptacle / Group - C / Keying Code - Gray / Socket (Корпус) - 1 шт
Документация >>> TE | HDSCS Series | 2-1418480-1
Документация >>> TE | HDSCS Series | Group C | Configurations
Документация >>> TE | HDSCS Series | Product Drawings
Документация >>> TE | HDSCS Series | Technical Manual
Документация >>> TE | HDSCS Series | MCP Contact
