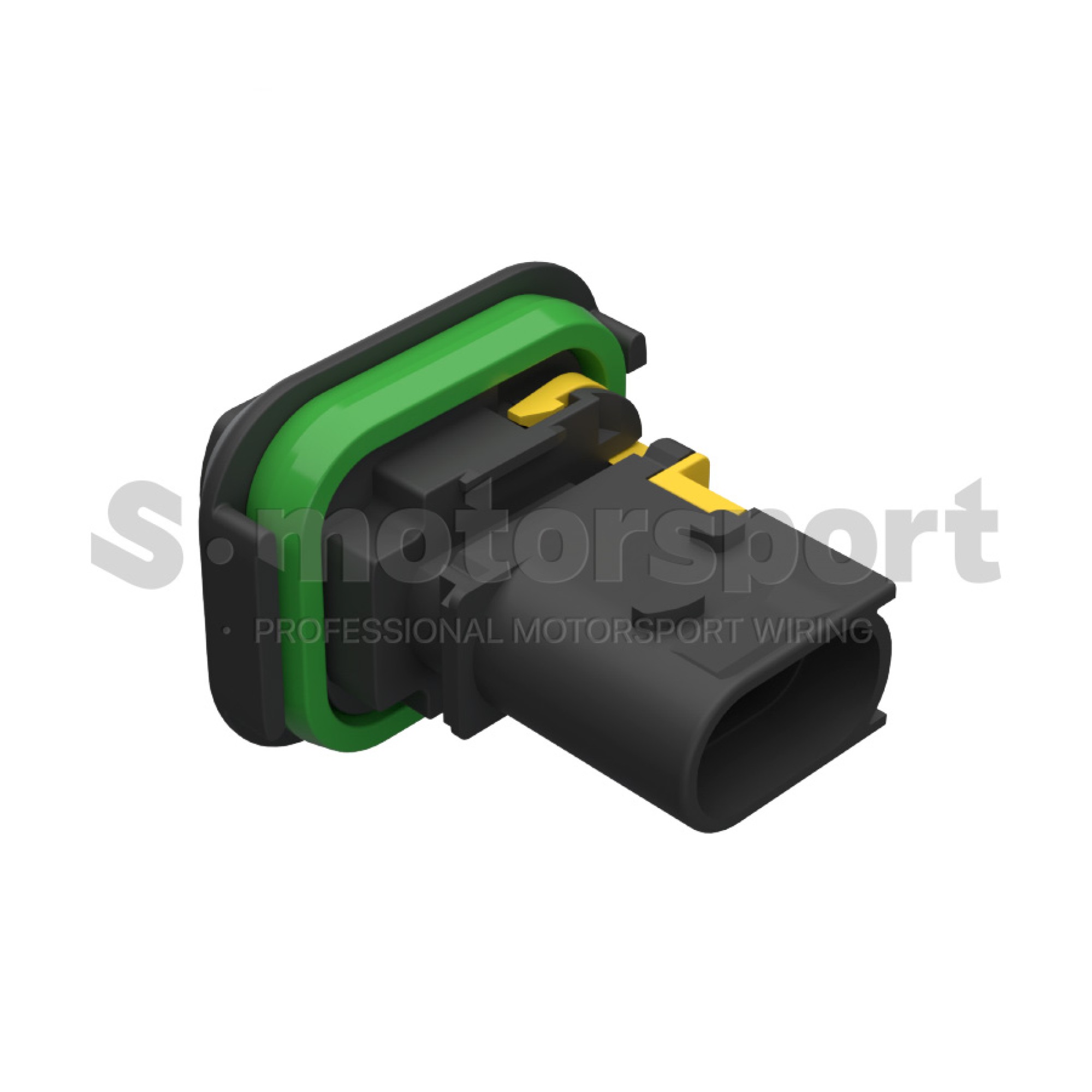

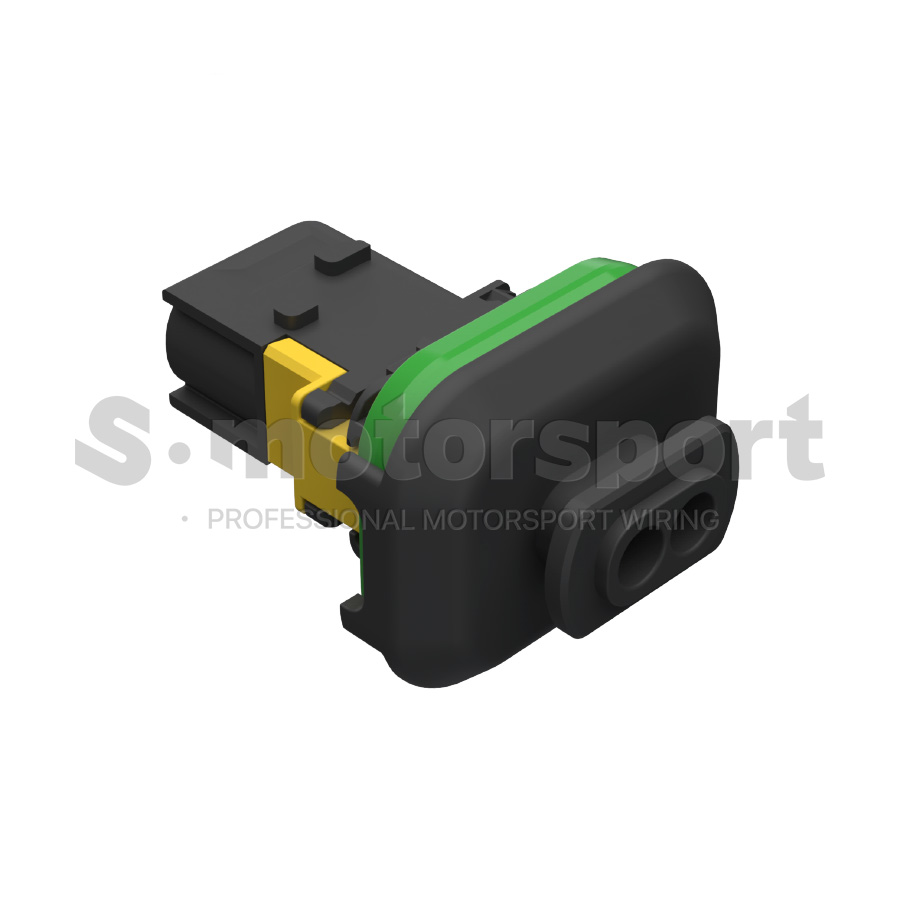

2-х контактный разъем TE AMP | HDSCS Series | MCP 2.8 Contact | 1-1703841-1
2-х контактный разъем TE AMP | HDSCS Series | MCP 2.8 Contact | Sealed | 1-1703841-1 | Flange / Group - A / Keying Code - Black / Pin (Корпус)
2-х контактный разъем TE AMP | HDSCS Series | MCP 2.8 Contact | Sealed | 1-1703841-1 | Flange / Group - A / Keying Code - Black / Pin (Корпус)
Техническое описание:
- Connector Series - HDSCS Series | Group A
- Contact Series - MCP 2.8 Series
- Connector Style - Flange
- Number of Positions - 2
- Keying Code - A / Black
- Contact Type - Pin
- Contact Size - #2.8
- Contact Current Rating (Max) (A) - #2.8 size - 30A
- Housing Material - PBT GF
- Temperature rating: -40 °C to +140 °C
- Water protection - IP67
В комплект поставки входит:
- 2-х контактный разъем TE AMP | HDSCS Series | MCP 2.8 Contact | Sealed | 1-1703841-1 | Flange / Group - A / Keying Code - Black / Pin (Корпус) - 1 шт
Документация >>> TE | HDSCS Series | 1-1703841-1
Документация >>> TE | HDSCS Series | Group A | Configurations
Документация >>> TE | HDSCS Series | Product Drawings
Документация >>> TE | HDSCS Series | Technical Manual
Документация >>> TE | HDSCS Series | MCP Contact
