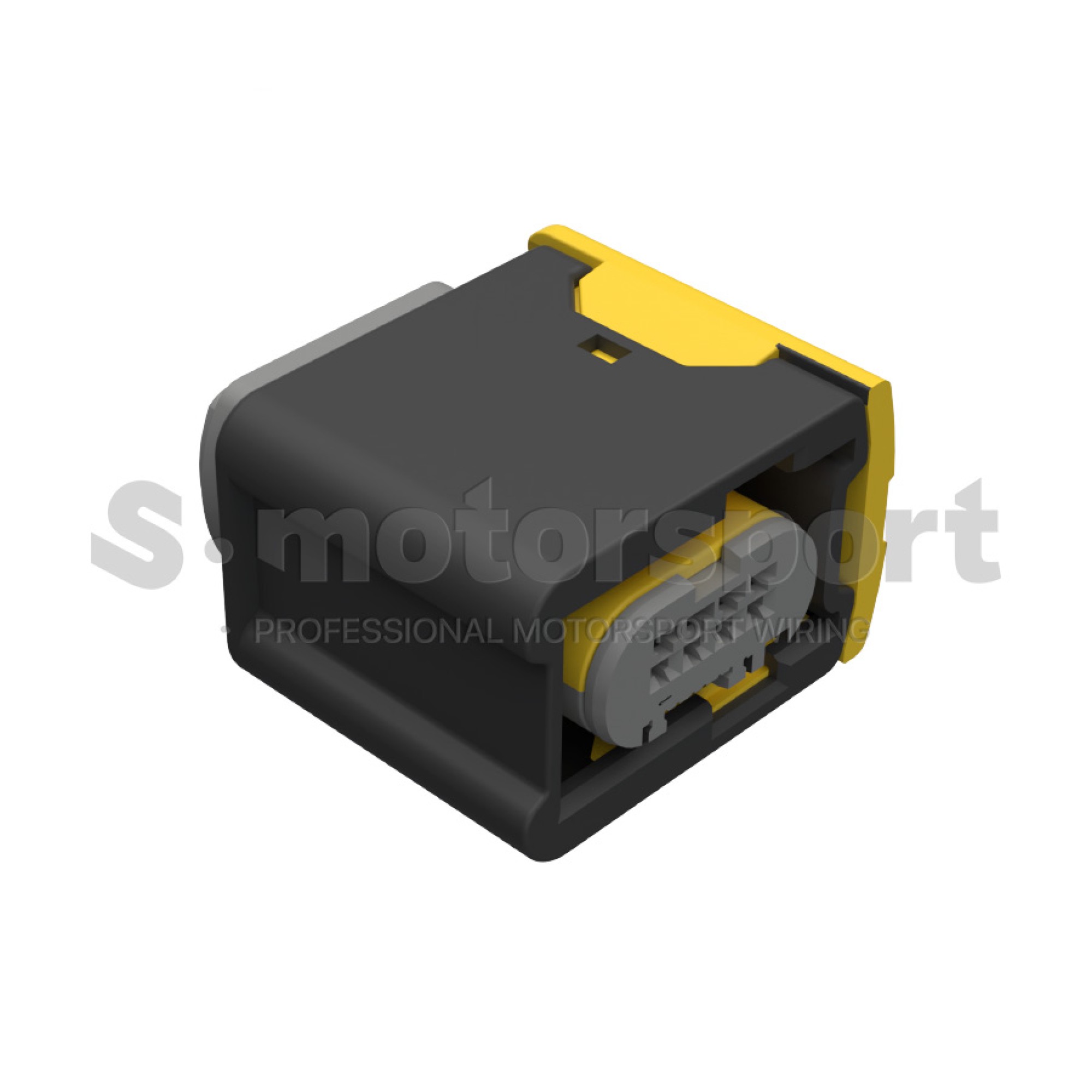

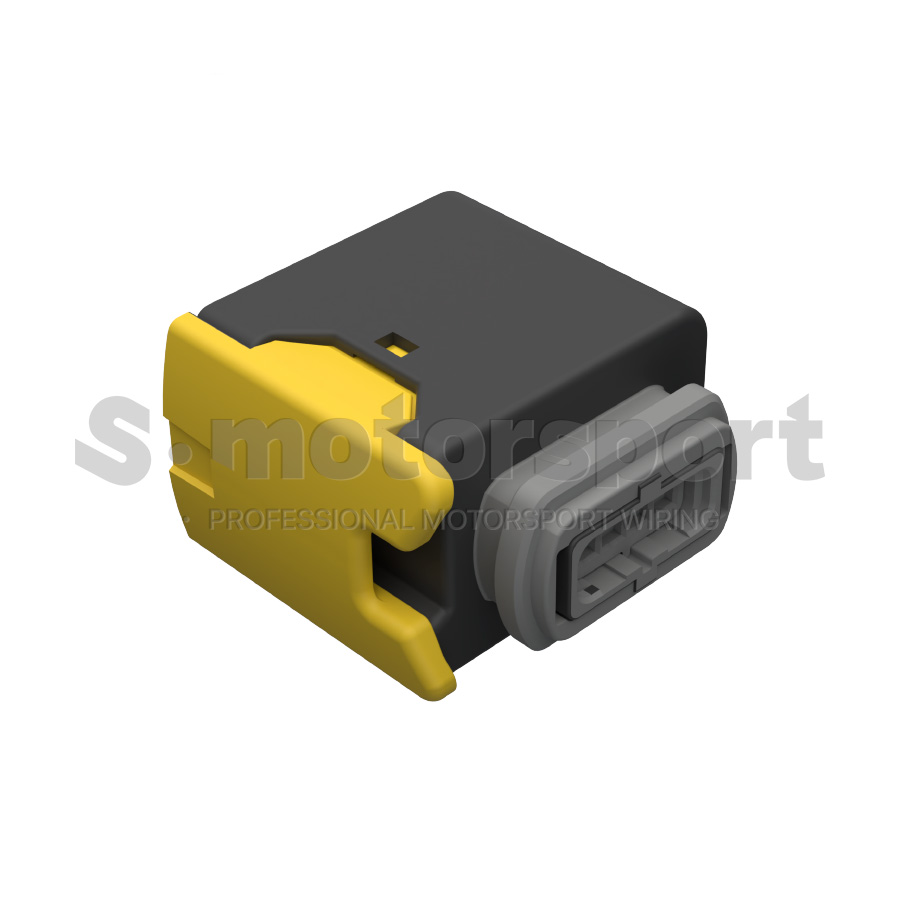

4-х контактный разъем TE AMP | HDSCS Series | MCP 1.2 Contact | 2-2366768-1
4-х контактный разъем TE AMP | HDSCS Series | MCON 1.2 Contact | Sealed | 2-2366768-1 | Receptacle / Group - A / Keying Code - Gray / Socket (Корпус)
4-х контактный разъем TE AMP | HDSCS Series | MCON 1.2 Contact | Sealed | 2-2366768-1 | Receptacle / Group - A / Keying Code - Gray / Socket (Корпус)
Техническое описание:
- Connector Series - HDSCS Series | Group A
- Contact Series - MCON 1.2 Series
- Connector Style - Receptacle
- Number of Positions - 4
- Keying Code - A / Gray
- Contact Type - Socket
- Contact Size - #1.2
- Contact Current Rating (Max) (A) - #1.5 size - 16A
- Housing Material - PBT GF
- Temperature rating: -40 °C to +140 °C
- Water protection - IP67
В комплект поставки входит:
- 4-х контактный разъем TE AMP | HDSCS Series | MCON 1.2 Contact | Sealed | 2-2366768-1 | Receptacle / Group - A / Keying Code - Gray / Socket (Корпус) - 1 шт
Документация >>> TE | HDSCS Series | 2-2366768-1
Документация >>> TE | HDSCS Series | Group A | Configurations
Документация >>> TE | HDSCS Series | Product Drawings
Документация >>> TE | HDSCS Series | Technical Manual
Документация >>> TE | HDSCS Series | MCP Contact
