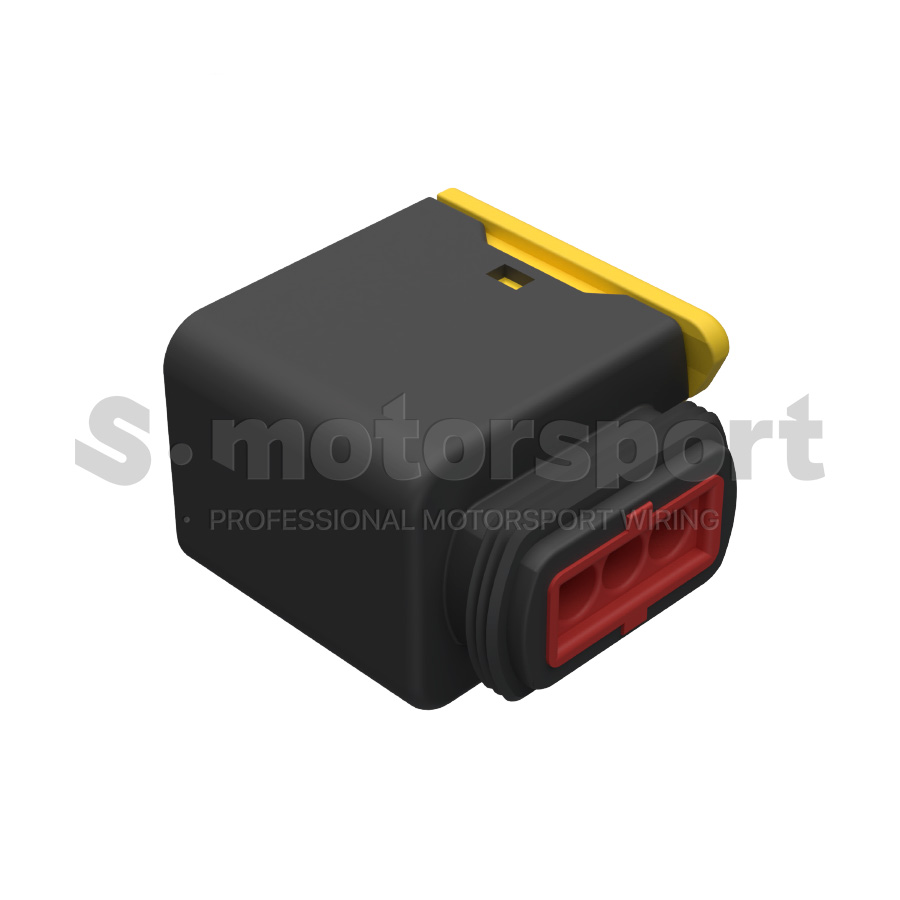

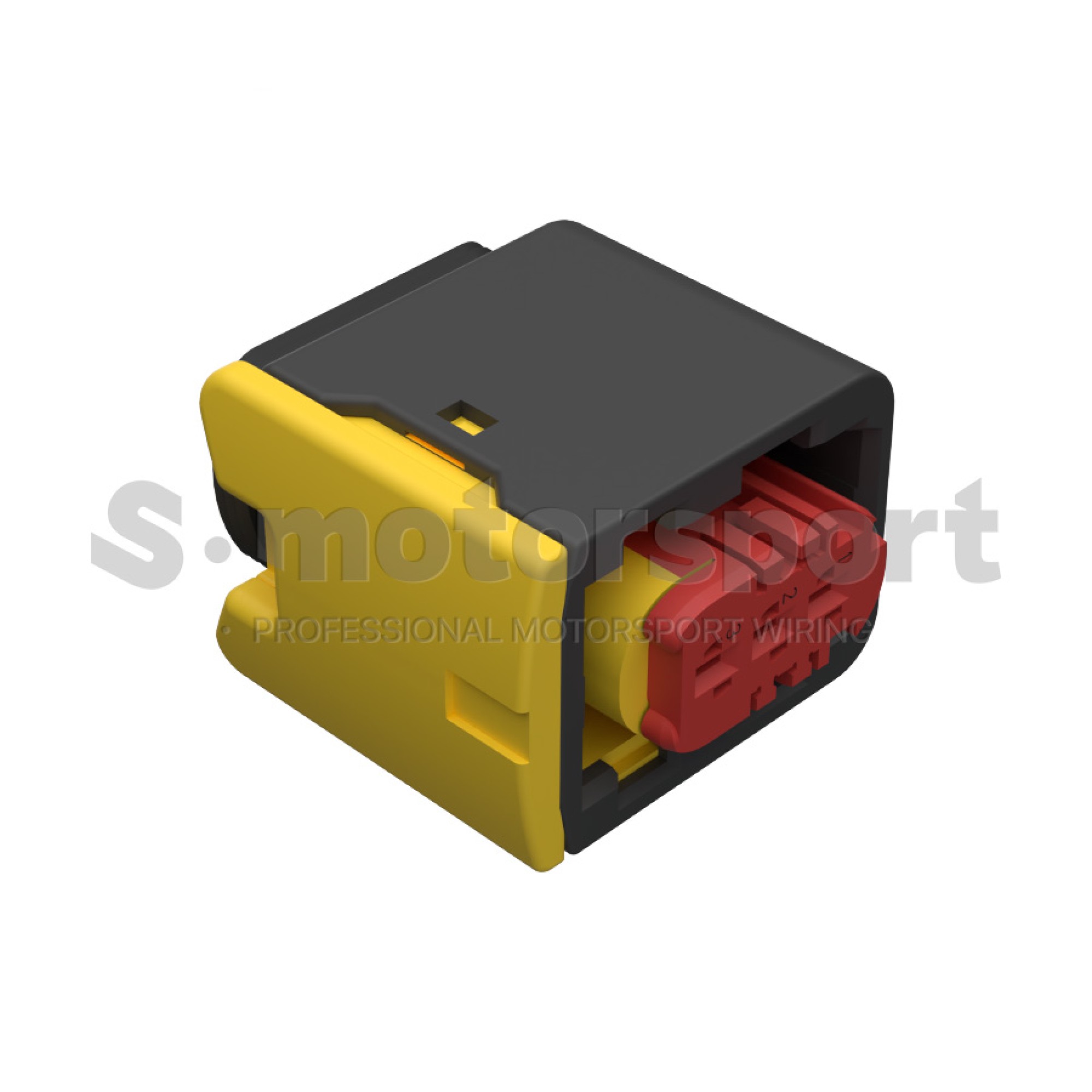

3-х контактный разъем TE AMP | HDSCS Series | MCP 1.5K Contact | 6-1418448-1
3-х контактный разъем TE AMP | HDSCS Series | MCP 1.5K Contact | Sealed | 6-1418448-1 | Receptacle / Group - A / Keying Code - Red / Socket (Корпус)
3-х контактный разъем TE AMP | HDSCS Series | MCP 1.5K Contact | Sealed | 6-1418448-1 | Receptacle / Group - A / Keying Code - Red / Socket (Корпус)
Техническое описание:
- Connector Series - HDSCS Series | Group A
- Contact Series - MCP 1.5K Series
- Connector Style - Receptacle
- Number of Positions - 3
- Keying Code - A / Red
- Contact Type - Socket
- Contact Size - #1.5
- Contact Current Rating (Max) (A) - #1.5 size - 20A
- Housing Material - PBT GF
- Temperature rating: -40 °C to +140 °C
- Water protection - IP67
В комплект поставки входит:
- 3-х контактный разъем TE AMP | HDSCS Series | MCP 1.5K Contact | Sealed | 6-1418448-1 | Receptacle / Group - A / Keying Code - Red / Socket (Корпус) - 1 шт
Документация >>> TE | HDSCS Series | 6-1418448-1
Документация >>> TE | HDSCS Series | Group A | Configurations
Документация >>> TE | HDSCS Series | Product Drawings
Документация >>> TE | HDSCS Series | Technical Manual
Документация >>> TE | HDSCS Series | MCP Contact
