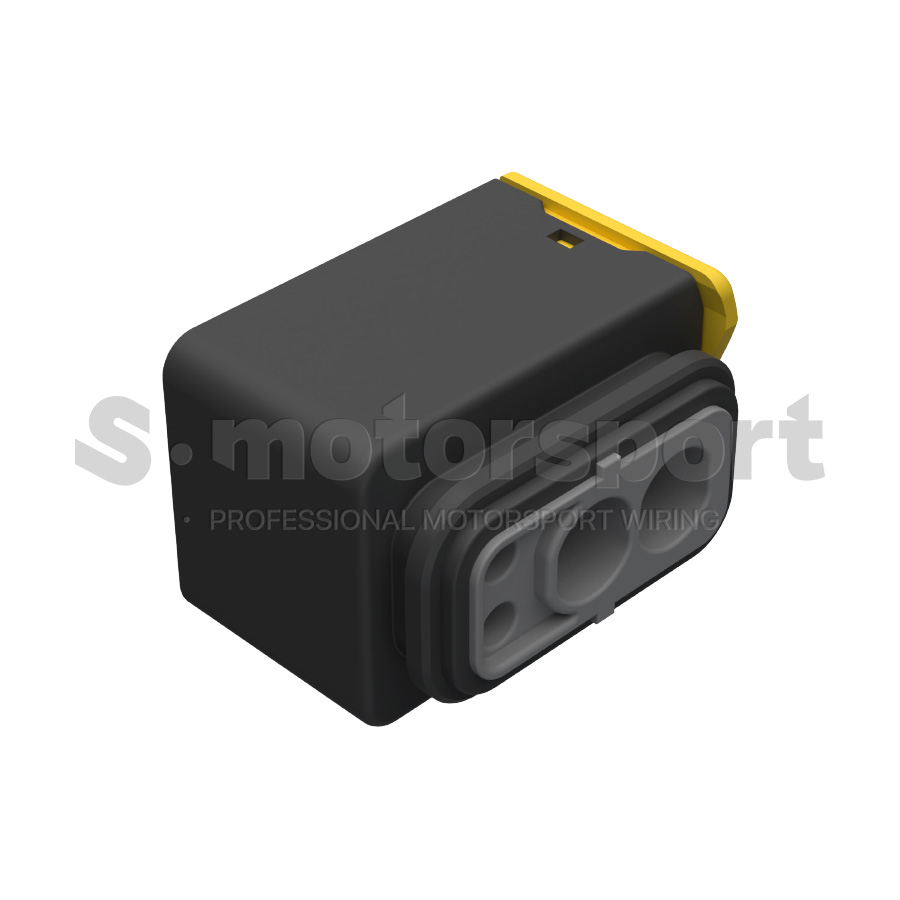

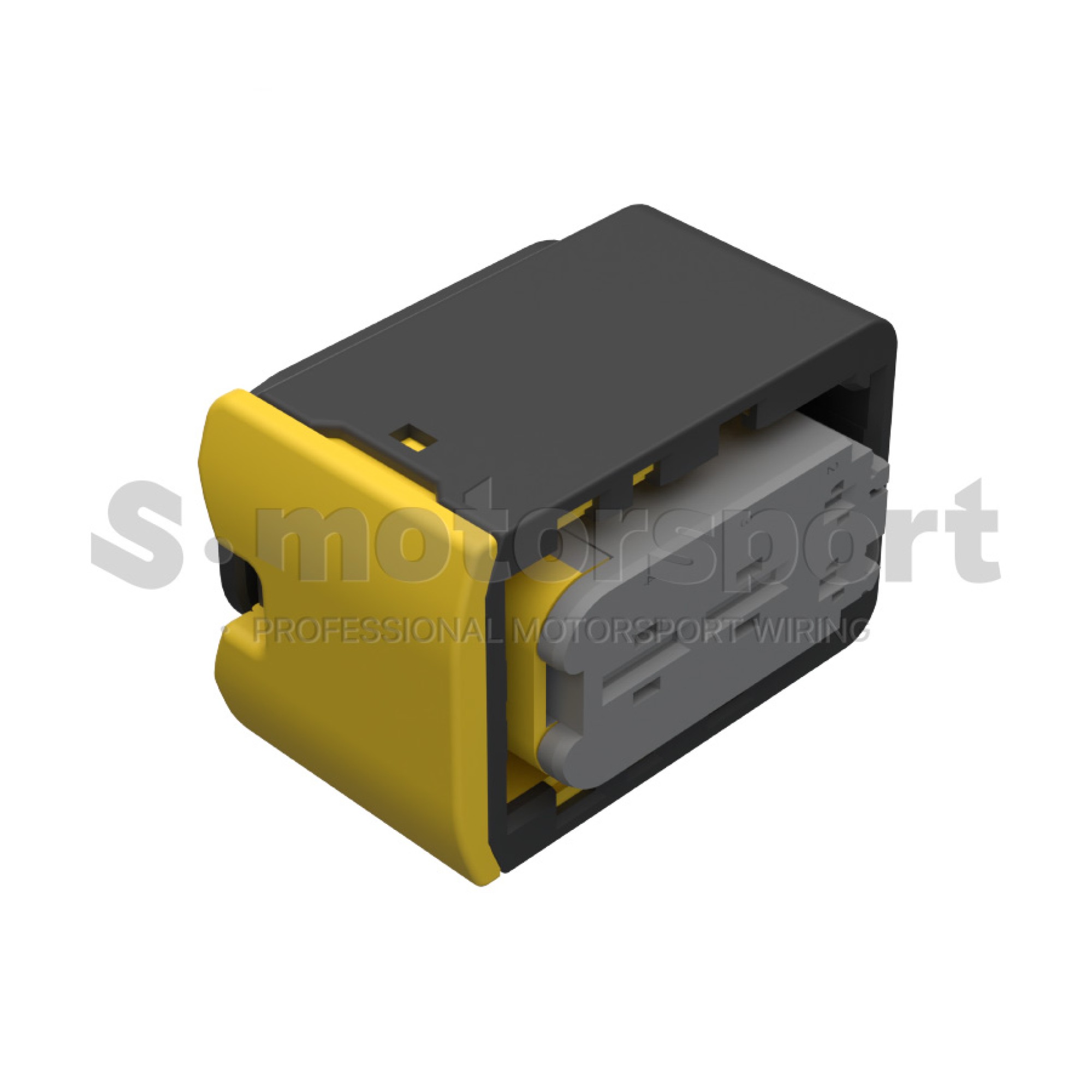

4-х контактный разъем TE AMP | HDSCS Series | MCP 1.5K/4.8K/6.3 Contact | 2-2208157-1

4-х контактный разъем TE AMP | HDSCS Series | MCP 1.5K/4.8K/6.3 Contact | Sealed | 2-2208157-1 | Receptacle / Group - D / Keying Code - Gray / Socket (Корпус)

Техническое описание:

• Connector Series - HDSCS Series | Group D
• Contact Series - MCP 1.5K/4.8K/6.3 Series
• Connector Style - Receptacle
• Number of Positions - 4
• Keying Code - B / Gray
• Contact Type - Socket
• Contact Size - #1.5K | #4.8K/6.3
• Contact Current Rating (Max) (A) - #1.5K size - 20A | #4.8K/6.3 size - 40A
• Housing Material - PBT GF
• Temperature rating: -40 °C to +140 °C
• Water protection - IP67

В комплект поставки входит:

• 4-х контактный разъем TE AMP | HDSCS Series | MCP 1.5K/4.8K/6.3 Contact | Sealed | 2-2208157-1 | Receptacle / Group - D / Keying Code - Gray / Socket (Корпус) - 1 шт

Документация  >>>  TE | HDSCS Series | 2-2208157-1

Документация  >>>  TE | HDSCS Series | Group D | Configurations

Документация  >>>  TE | HDSCS Series | Product Drawings

Документация  >>>  TE | HDSCS Series | Technical Manual

Документация  >>>  TE | HDSCS Series | MCP Contact
