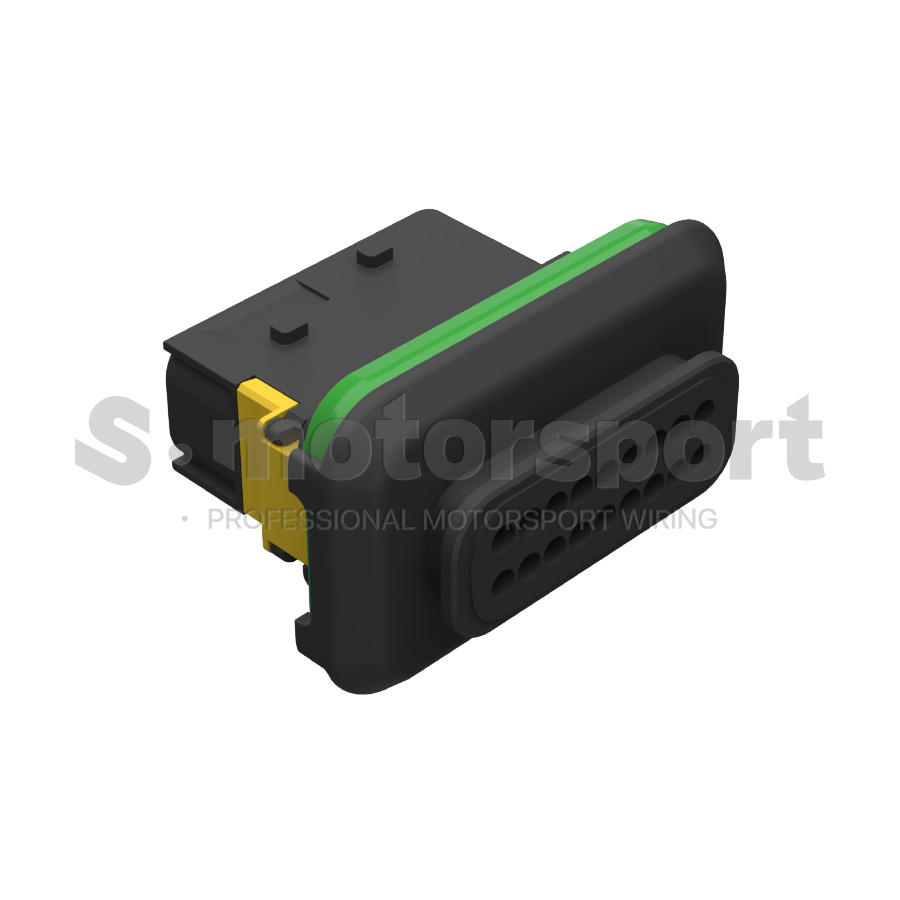

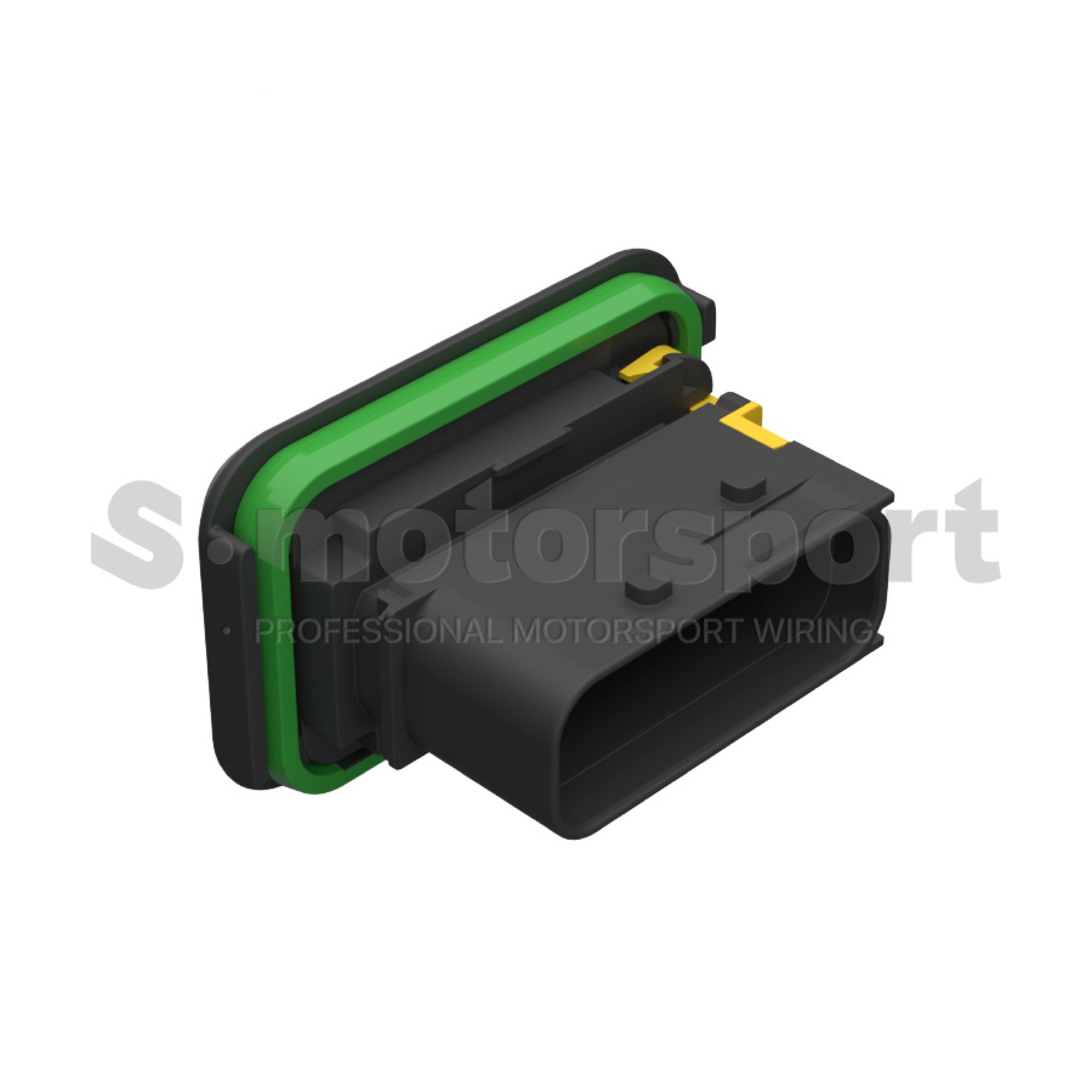

18-ти контактный разъем TE AMP | HDSCS Series | MCP 1.5K Contact | 1-1564526-1
18-ти контактный разъем TE AMP | HDSCS Series | MCP 1.5K Contact | Sealed | 1-1564526-1 | Flange / Group - E / Keying Code - Black / Pin (Корпус)
18-ти контактный разъем TE AMP | HDSCS Series | MCP 1.5K Contact | Sealed | 1-1564526-1 | Flange / Group - E / Keying Code - Black / Pin (Корпус)
Техническое описание:
- Connector Series - HDSCS Series | Group E
- Contact Series - MCP 1.5K Series
- Connector Style - Flange
- Number of Positions - 18
- Keying Code - E / Black
- Contact Type - Pin
- Contact Size - #1.5K
- Contact Current Rating (Max) (A) - #1.5K size - 20A
- Housing Material - PBT GF
- Temperature rating: -40 °C to +140 °C
- Water protection - IP67
В комплект поставки входит:
- 18-ти контактный разъем TE AMP | HDSCS Series | MCP 1.5K Contact | Sealed | 1-1564526-1 | Flange / Group - E / Keying Code - Black / Pin (Корпус) - 1 шт
Документация >>> TE | HDSCS Series | 1-1564526-1
Документация >>> TE | HDSCS Series | Group E | Configurations
Документация >>> TE | HDSCS Series | Product Drawings
Документация >>> TE | HDSCS Series | Technical Manual
Документация >>> TE | HDSCS Series | MCP Contact
