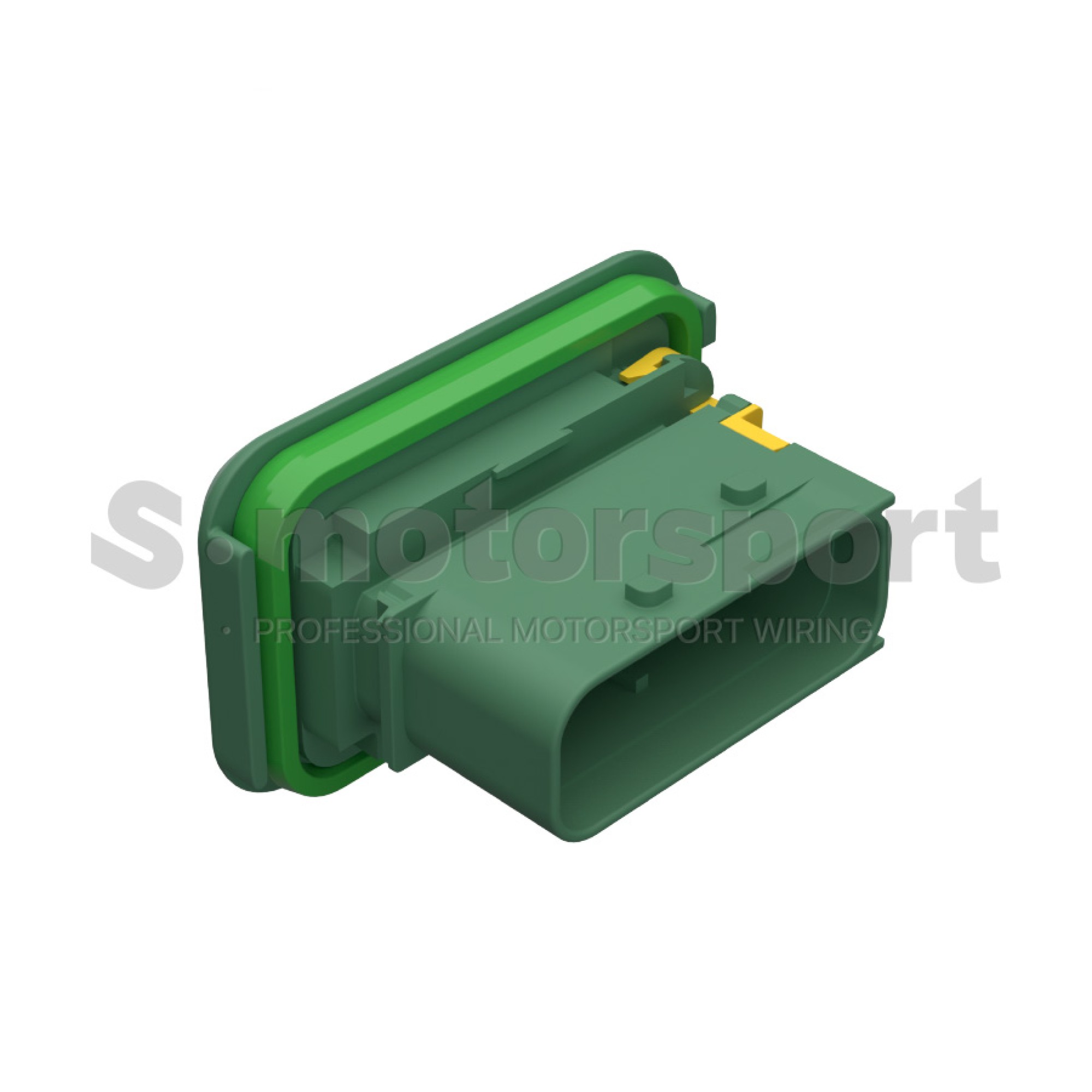

15-ти контактный разъем TE AMP | HDSCS Series | MCP 1.5K/2.8 Contact | 3-1564532-1

15-ти контактный разъем TE AMP | HDSCS Series | MCP 1.5K/2.8 Contact | 3-1564532-1

15-ти контактный разъем TE AMP | HDSCS Series | MCP 1.5K/2.8 Contact | Sealed | 3-1564532-1 | Flange / Group - E / Keying Code - Green / Pin (Корпус)

Запросить цену

15-ти контактный разъем TE AMP | HDSCS Series | MCP 1.5K/2.8 Contact | Sealed | 3-1564532-1 | Flange / Group - E / Keying Code - Green / Pin (Корпус)

Техническое описание:

Connector Series - HDSCS Series | Group E
Contact Series - MCP 1.5K/2.8 Series
Connector Style - Flange
Number of Positions - 15
Keying Code - E / Green
Contact Type - Pin
Contact Size - #1.5K/2.8
Contact Current Rating (Max) (A) - #1.5K/2.8 size - 40A
Housing Material - PBT GF
Temperature rating: -40 °C to +140 °C
Water protection - IP67

В комплект поставки входит:

15-ти контактный разъем TE AMP | HDSCS Series | MCP 1.5K/2.8 Contact | Sealed | 3-1564532-1 | Flange / Group - E / Keying Code - Green / Pin (Корпус) - 1 шт

Документация >>> TE | HDSCS Series | 3-1564532-1

Документация >>> TE | HDSCS Series | Group E | Configurations

Документация >>> TE | HDSCS Series | Product Drawings

Документация >>> TE | HDSCS Series | Technical Manual

Документация >>> TE | HDSCS Series | MCP Contact
