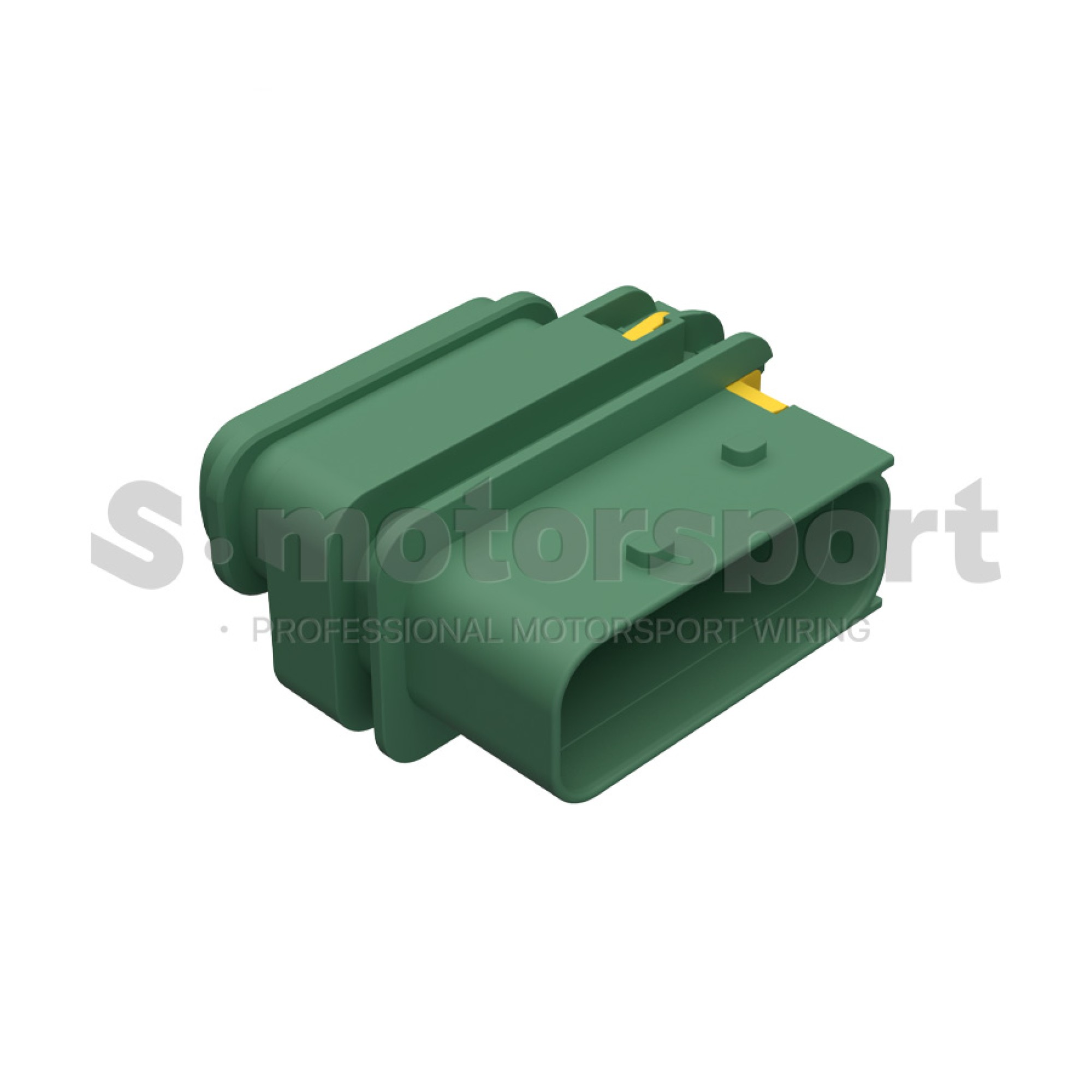

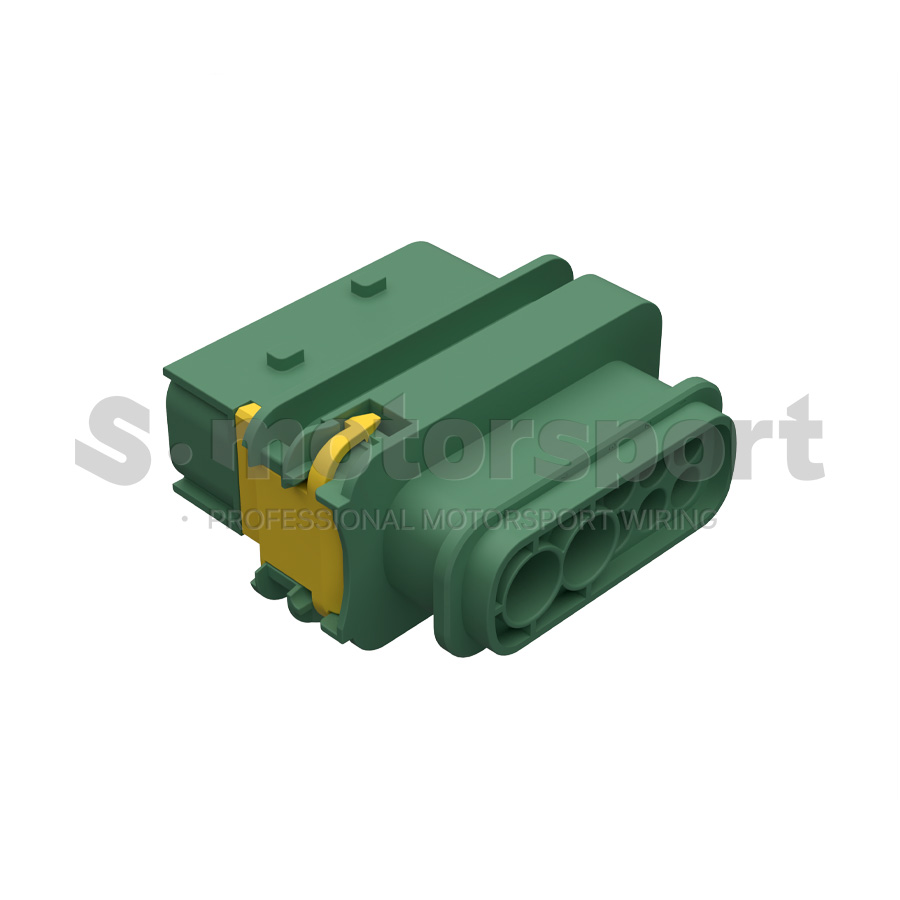

8-ми контактный разъем TE AMP | HDSCS Series | MCP 2.8/4.8K/6.3 Contact | 3-2383519-1
8-ми контактный разъем TE AMP | HDSCS Series | MCP 2.8/4.8K/6.3 Contact | Sealed | 3-2383519-1 | Without Flange / Group - E / Keying Code - Green / Pin (Корпус)
8-ми контактный разъем TE AMP | HDSCS Series | MCP 2.8/4.8K/6.3 Contact | Sealed | 3-2383519-1 | Without Flange / Group - E / Keying Code - Green / Pin (Корпус)
Техническое описание:
- Connector Series - HDSCS Series | Group E
- Contact Series - MCP 2.8/4.8K/6.3 Series
- Connector Style - Without Flange
- Number of Positions - 8
- Keying Code - E / Green
- Contact Type - Pin
- Contact Size - #2.8/4.8K/6.3
- Contact Current Rating (Max) (A) - #2.8/4.8K/6.3 size - 40A
- Housing Material - PBT GF
- Temperature rating: -40 °C to +140 °C
- Water protection - IP67
В комплект поставки входит:
- 8-ми контактный разъем TE AMP | HDSCS Series | MCP 2.8/4.8K/6.3 Contact | Sealed | 3-2383519-1 | Without Flange / Group - E / Keying Code - Green / Pin (Корпус) - 1 шт
Документация >>> TE | HDSCS Series | 3-2383519-1
Документация >>> TE | HDSCS Series | Group E | Configurations
Документация >>> TE | HDSCS Series | Product Drawings
Документация >>> TE | HDSCS Series | Technical Manual
Документация >>> TE | HDSCS Series | MCP Contact
