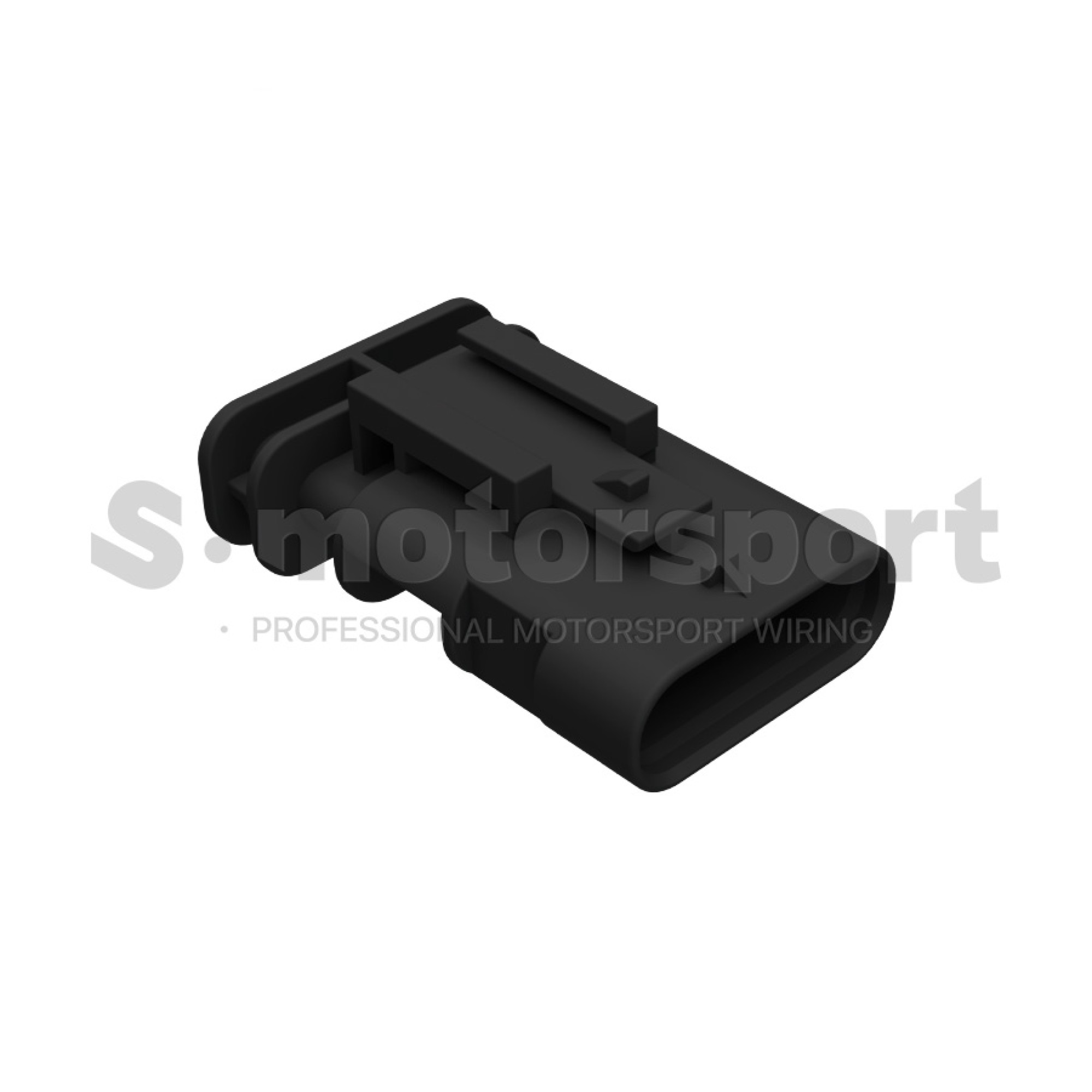

5-ти контактный разъем TE AMP | MCON 1.2mm Series | Gen#2 | 1-2236954-5
5-ти контактный разъем TE AMP | MCON 1.2mm Series | Gen#2 | LL Contact | Sealed | Keying Code-A | 1-2236954-5 Black Pin (Корпус)
5-ти контактный разъем TE AMP | MCON 1.2mm Series | Gen#2 | LL Contact | Sealed | Keying Code-A | 1-2236954-5 Black Pin (Корпус)
Техническое описание:
- Connector Series - MCON 1.2mm Gen#2 / MCON Interconnection System
- Contact Series - MCON 1.2mm / Locking Lance (LL Contact)
- Number of Positions - 5
- Contact Type - Socket
- Contact Size - 1.2 mm
- Sealed - Yes
- CPA - Yes
- Keying Code - A
- Temperature rating: -40 °C to +120 °C
- Water protection - IPX9K
В комплект поставки входит:
- 5-ти контактный разъем TE AMP | MCON 1.2mm Series | Gen#2 | LL Contact | Sealed | Keying Code-A | 1-2236954-5 Black Pin (Корпус) - 1 шт
Документация >>> TE | MCON 1.2mm | 1-2236954-5
Документация >>> TE | MCON 1.2mm | Technical_Manual
Документация >>> TE | MCON 1.2mm | Application Specification
