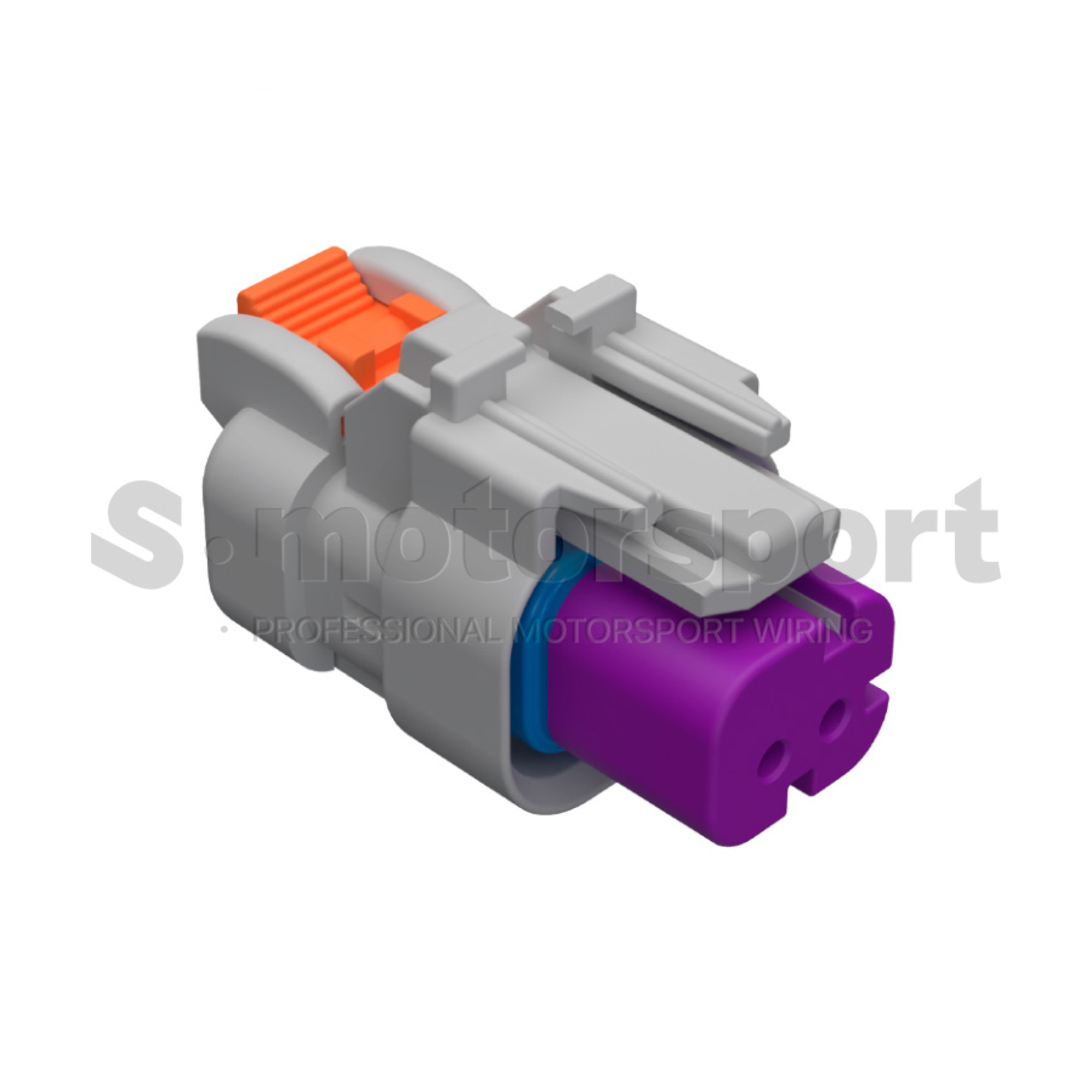

2-х контактный разъем TE AMP | AMPSEAL 16 Series | 2320920-3 / AS16-HT-06-02SC-N | Socket
2-х контактный разъем TE AMP | AMPSEAL 16 Series | 2320920-3 / AS16-HT-06-02SC-N | High Temp Plug / Keying Code - C / TPA Color - Purple / Standard Seal / Socket (Корпус)
Техническое описание:
- Connector Series - AMPSEAL 16 Series
- Contact Series - AMPSEAL 16 Series / HDSF 16 & Solid Contacts / Deutsch Series
- Connector Style - High Temperature Plug
- Number of Positions - 2
- Contact Type - Socket
- Contact Size - 1.5mm
- Contact Current Rating (Max) (A) - 13A
- Wire Seal - Standard / N-Seal
- Wire Diameter Range - 2.18 - 3.67 mm
- Keying Kode - C
- Housing Color - Gray
- TPA Color - Purple
- Housing Material - PBT
- Temperature rating: -40 °C to +150 °C
- Water protection - IP67 / IP6K9K
В комплект поставки входит:
- 2-х контактный разъем TE AMP | AMPSEAL 16 Series | 2320920-3 / AS16-HT-06-02SC-N | High Temp Plug / Keying Code - C / TPA Color - Purple / Standard Seal / Socket (Корпус) - 1 шт
Документация >>> TE | AMP | AMPSEAL 16 Series | 2320920-3 / AS16-HT-06-02SC-N
Документация >>> TE | AMP | AMPSEAL 16 Series | High Temperature Connectors Applications
Документация >>> TE | AMP | AMPSEAL 16 Series | Configurations
Документация >>> TE | AMP | AMPSEAL 16 Series | Ordering Information
Документация >>> TE | AMP | AMPSEAL 16 Series | Part Numbering System
Документация >>> TE | AMP | AMPSEAL 16 Series | Technical Manual
Документация >>> TE | AMP | AMPSEAL 16 Series | Contacts
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 2 Way HT Plug Connectors / Standard Wire Seal
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 3 Way HT Plug Connectors / Standard Wire Seal
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 4 Way HT Plug Connectors / Standard Wire Seal
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 6 Way HT Plug Connectors / Standard Wire Seal
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 8 Way HT Plug Connectors / Standard Wire Seal
Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 12 Way HT Plug Connectors / Standard Wire Seal
