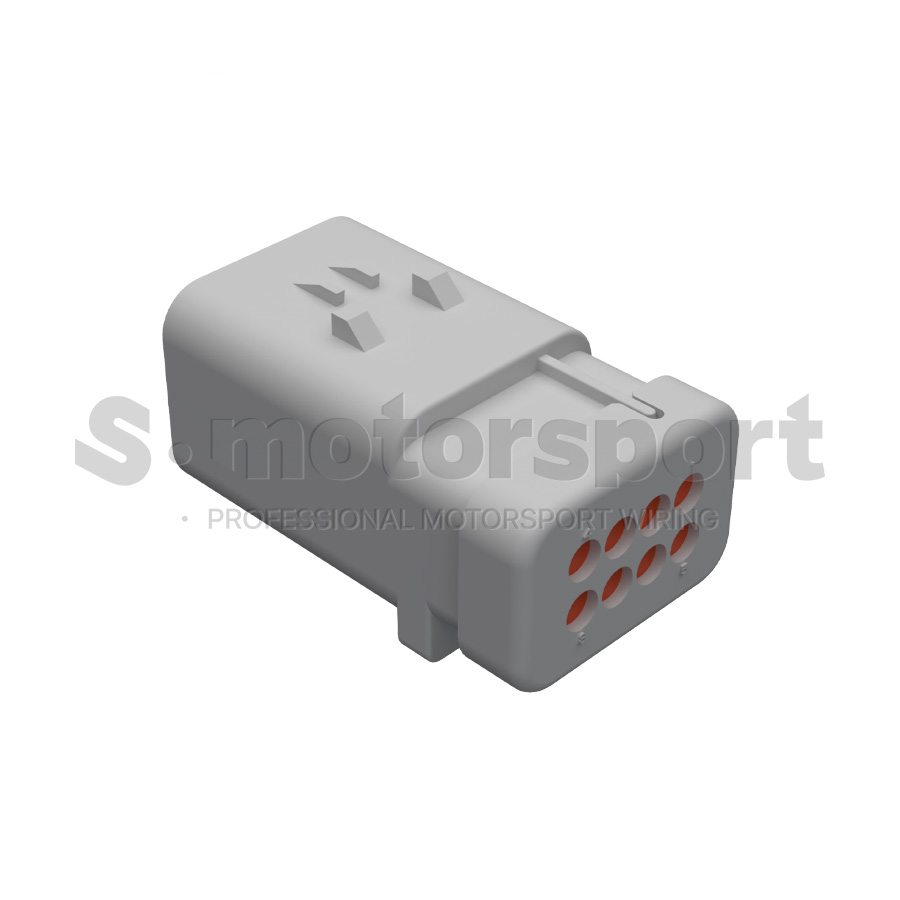

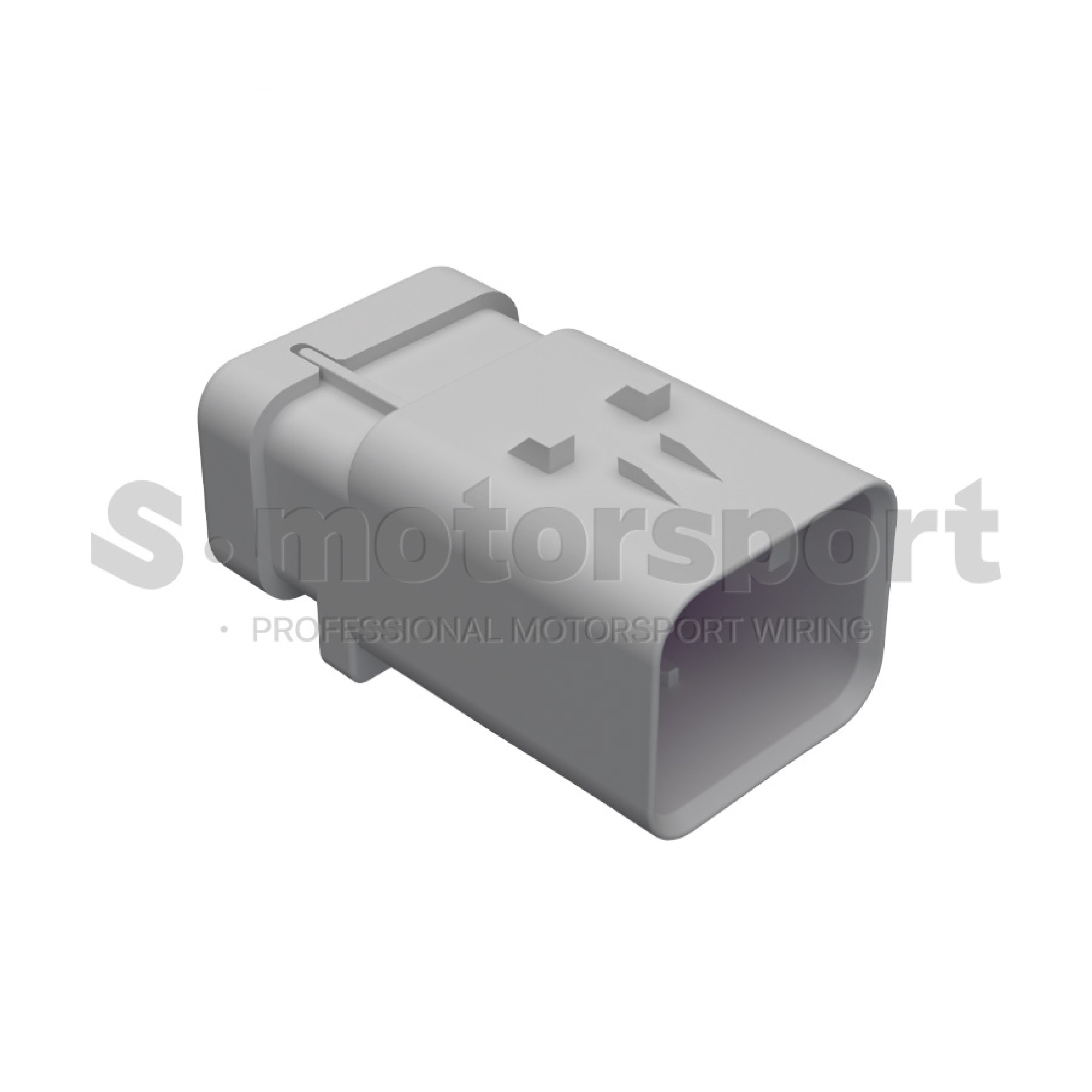

8-ми контактный разъем TE AMP | AMPSEAL 16 Series | 2320930-3 / AS16-HT-04-08PC-E | Pin

8-ми контактный разъем TE AMP | AMPSEAL 16 Series | 2320930-3 / AS16-HT-04-08PC-E | High Temp In-Line Cap | Keying Code - C / TPA Color - Purple / Reduced / Pin (Корпус)

Запросить цену

8-ми контактный разъем TE AMP | AMPSEAL 16 Series | 2320930-3 / AS16-HT-04-08PC-E | High Temp In-Line Cap | Keying Code - C / TPA Color - Purple / Reduced / Pin (Корпус)

Техническое описание:

Connector Series - AMPSEAL 16 Series
Contact Series - AMPSEAL 16 Series / HDSF 16 & Solid Contacts / Deutsch Series
Connector Style - High Temperature In-Line Cap
Number of Positions - 8

Contact Type - Pin

Contact Size - 1.5mm
Contact Current Rating (Max) (A) - 13A
Wire Seal - Reduced / E-Seal
Wire Diameter Range - 1.18 - 2.54 mm
Keying Kode - C
Housing Color - Gray
TPA Color - Purple
Housing Material - PBT

Temperature rating: -40 °C to +150 °C

Water protection - IP67 / IP6K9K

В комплект поставки входит:

8-ми контактный разъем TE AMP | AMPSEAL 16 Series | 2320930-3 / AS16-HT-04-08PC-E | High Temp In-Line Cap | Keying Code - C / TPA Color - Purple / Reduced / Pin (Корпус) - 1 шт

Документация >>> TE | AMP | AMPSEAL 16 Series | 2320930-3 / AS16-HT-04-08PC-E

Документация >>> TE | AMP | AMPSEAL 16 Series | High Temperature Connectors Applications

Документация >>> TE | AMP | AMPSEAL 16 Series | Configurations

Документация >>> TE | AMP | AMPSEAL 16 Series | Ordering Information

Документация >>> TE | AMP | AMPSEAL 16 Series | Part Numbering System

Документация >>> TE | AMP | AMPSEAL 16 Series | Technical Manual

Документация >>> TE | AMP | AMPSEAL 16 Series | Contacts

Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 2 Way HT In-Line Connectors / Standard Wire Seal

Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 3 Way HT In-Line Connectors / Standard Wire Seal

Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 4 Way HT In-Line Connectors / Standard Wire Seal

Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 6 Way HT In-Line Connectors / Standard Wire Seal

Документация >>> TE | AMP | AMPSEAL 16 Series | Product Drawings - 8 Way HT In-Line Connectors / Standard Wire Seal
